DITHD 05-17120 - PS/2 VGA KVM Adapter
by DITHD

DITHD 05-17120

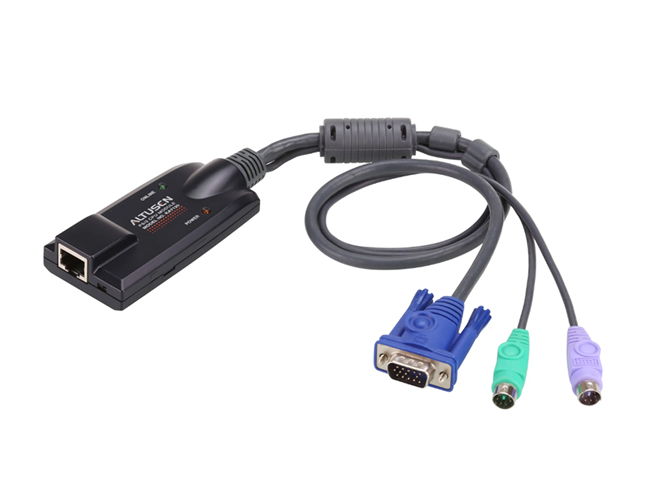

The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Specifications

• Connectors
  • Link: 1 x RJ-45 female
  • Computer:
    • 2 x 6-pin Mini-DIN Male
      1 x HDB-15 Male
• LEDs
  • Online: 1 (Green)
  • Power: 1 (Orange)
• Environmental
  • Operating temperature: 0~50ºC
  • Storage temperature: -20~60ºC
• Physical properties
  • Housing: plastic
  • Weight: 0.15Kg (0.33lb)
  • Dimensions (LxWxH):
    • 9.00 x 4.30 x 2.18 cm
      (3.54 x 1.69 x 0.86 in.)
• Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
