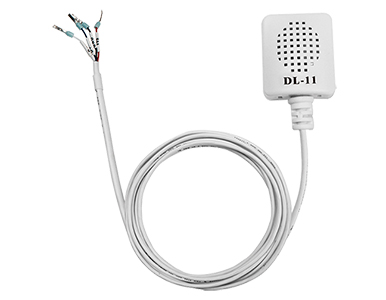

ICP DAS DL-11 - RS 485 Temperature/Humidity/Atmospheric pressure/Dew Point Sensing Module
by ICP DAS
|
|
|
|
a RS-485 remote Temperature/Humidity/Atmospheric pressure/Dew Point sensing module that gives you real time temperature and humidity information at the same time. It contains an RS-485 communication interface and a sensor for measuring temperature, humidity, atmospheric pressure, dew point sensing.
|
|
|

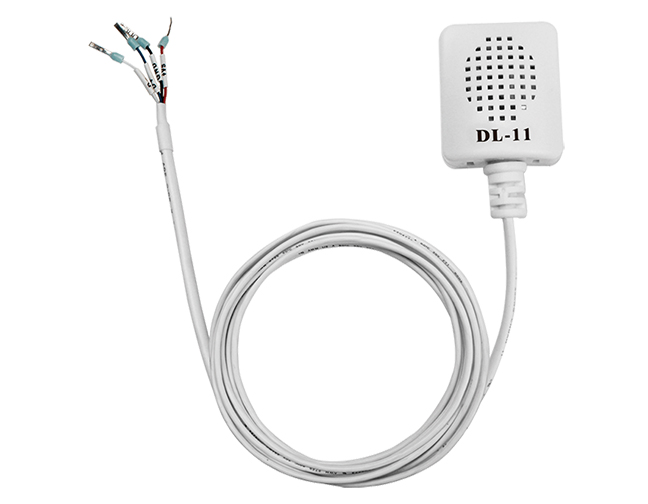

ICP DAS DL-11
The DL-11 is able to provide real-time temperature, humidity, atmospheric pressure and dew point information by RS-485 with Modbus RTU protocol.
DCON Utility Pro provides easy and convenient interface for users to configure the module. Based on its amazing tiny size, the DL-11 achieves the goal of space-saving that allows it to be installed anywhere.
Specifications
- Temperature measurement
- Range: -25~75ºC
- Resolution: 0.1ºC
- Accuracy: typical ±0.4ºC
- Precision: ±0.1ºC
- Humidity Measurement
- Range: 0~95% RH
- Resolution: 0.1ºC
- Accuracy: typical ±3% RH @ 20~80% RH
- Precision: ±0.1ºC
- Dew Point
- Range: calculated using temperature and relative humidity
- Resolution: 0.1ºC
- Atmospheric Pressure
- Range: 300~1200 hPa
- Accuracy: 1 hPa
- Resolution: 0.1 hPa
- COM ports
- Ports: 1 x RS-485, non-isolated
- Baud Rate: 1200~115200 bps
- Data format (N, 8, 1)
- Protocol: Modbus RTU
- Power
- Input range: 10~30 VDC
- Consumption: 0.05W
- Mechanical
- Dimensions (mm): 25x20.2x30 (WxLxH)
- Installation: Magnetic mount; wall mount
- Cable length: 3m
- Environment
- Operating temperature: -25~75ºC
- Storage temperature: -30~80ºC
- Humidity: 0~95% RH, non-condensing
|
|
