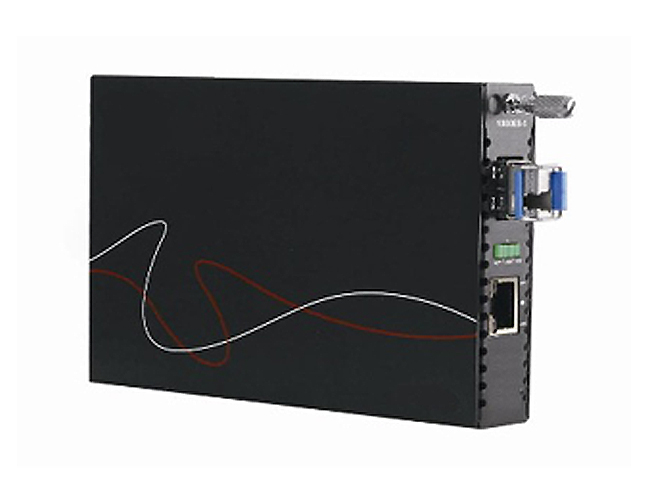

To provide an easy use yet powerful solution for FTTX applications, The Data Connect releases a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, 2178FEE-GB, featuring plug & play and smart media conversion functions.
Distance Extension with High Performance and Steady Network Communication The Data Connect 2178FEE-GB Smart Gigabit Media Converter – DCE 2178FEE-GB extends communication distance with highly Gigabit performance via fiber optical cable. The DCE 2178FEE-GB provides media conversion between 1/100/1000Base-T and 1000Base-SX/LX interface such as multi –mode LC/SC connectors (220m /550m), single-mode LC/SC connector (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic application.
Enhanced Smart Management Features The Data Connect provide Auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation / force for fiber interface and Link Loss Return (LLR) to diagnose network connections. Also, the LLR function can immediately alarm network administrator the media link issue and provide efficient solution to monitor the entire network.
Easy Installation The Data Connect 2178FEE-GB allows two type segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or used as a slide in module to the Data Connect 19-inch Web Smart / Management 16-slots Media Converter chassis. When working with the Web Smart / Managed Media Converter chassis, the Data Connect 2178FEE-GB is able to be managed and is status to be monitored through the local RS-232 console and remote web interface.
Model DCE 2178FEE-GB
Hardware
Standards IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM
Ports 1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port
Copper Interface RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
Optic Interface 10/100/1000Base-T to 1000Base-SX(SC, MM) Smart Media Converter-220m/550m / 10/100/1000Base-T to 1000Base-LX (SC,SM) smart Media Converter- 10km: SC 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depend on SFP module: SFP 10/100/100Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm- 60km / 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 15km / 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km / 10/100/1000Base-T to 1000Base –LX9WDM) Smart Media Converter- X: 1550nm-60km: WDM
Optic Wavelength 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: 850nm 10/100/1000Base-T to 1000Base-LX (SC, SM) smart Media Converter- 10km: 1310nm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depend on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km / RX: 1550nm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km / RX: 1310nm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km / RX: 1550nm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km / RX: 1310nm
Launch Power (dBm) Max. 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -4dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -3 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km : -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km : +5 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km : -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km : +4 dBm
Launch Power (dBm) Min. 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -9.5 dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -9.5 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -9 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km : 0 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km : -9 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km : -1 dBm
Receive Sensitivity 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -13.5 dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -14.4 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -21 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km: -25 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km: -21 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km: -25 dBm
Maximum Input Power 100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -18 dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -20 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km: -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km: -2 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km: -2 dBm
Speed Twisted-Pair 10/20Mbps for Half / Full Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full Duplex
Speed Fiber-Optic 2000Mbps for Full Duplex
Cable Twisted Pair 10Base-T: 2-pair UTP Cat. 3, 4, 5, up to 100m 100Base-TX: 2-pair UTP Cat.5, up to 100m 1000Base-T: 4-pair STP Cat.5 up to 100m
Cable Fiber-optic Cable * 50/125µm multi mode fiber cable, up to 220/550m * 9/125µm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module)
LED Indicator * PWR (Green) * TP: 1000, LINK/ACT * Fiber: LINK/ACT
DIP Switch Fiber (Auto-negotiation / Manual), LFP (Disable/Enable)
Power Consumption 3.1 watts / 10BTU (maximum)
QAM TS-1000, IEEE 802.3ah terminal
Jumbo Frame size 9K
Power Input DC 5V /2A
Dimension (W x D x H) 81 x 94 x 26mm
Operating Environment Temperature: 0~50°C; 5~90% non-condensing
Storage Environment Temperature: -40~70°C; 5~90% non-condensing
Emissions FCC Class A, CE Class A
