The Data Connect 2178 Coax Ethernet Extender is designed for an Industrial Coax Ethernet Extender application. The Data Connect 2178CEE has a switching architecture with 4 RJ-45 10/100Mbps Ethernet ports and one asymmetric or symmetric High Speed Ethernet port that can be RJ-11 or BNC Connector. Installation can use either BNC or RJ-11 for network deployment and achieve the absolutely fastest data transmission speed possible over existing coaxial cable and telephone wire without the need of rewiring.
The Data Connect 2178 Coax Ethernet Extender provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curb side traffic control cabinets. The Data Connect 2178CEE can operate in a wide temperature range of -40 to 75°C, so it can be placed in almost any location. The Data Connect 2178CEE is packaged in a compact, IP-30 metal case that allows either DIN or panel mounting for efficient use of cabinet space. The Data Connect 2178CEE has an integrated power supply with wide range of voltages (12~48VDC) that allow for worldwide operability or for dual-redundancy with reversible polarity and an additional switching high voltage option of 100-240VAC and 85-400VDC.
The Data Connect 2178 Coax Ethernet Extender incorporates Ethernet over VDSL2 to transmit the Ethernet format data by using VDSL signaling over the existing coaxial cable or telephone wire. Therefore, the Data Connect 2178CEE is very good for deploying in networks that can use existing coaxial cable and telephone wire to transmit data to the Internet with minimum cost. The Data Connect 2178CEE can adjust to Master or Slave mode via a DIP switch. When the Data Connect 2178CEE master is connected via telephone cable with the other Data Connect 2178CEE slave device, the performance will be up to 99/63Mbps for asymmetric data rate within 200m and up to 28/2Mbps for asymmetric data rate at 1.4km. When the Data Connect 2178CEE master is connected via coax to Data Connect 2178CEE slave devices, performance is up to 99/65Mbps for asymmetric data rate within 200m and up to 31/4Mbps for asymmetric data rate 2.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network.

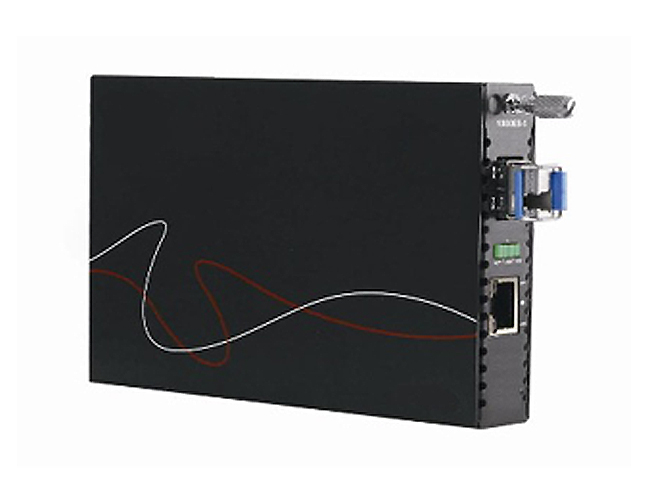

Model DCE 2178FEE-GB
Hardware
Standards IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM
Ports 1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port
Copper Interface RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
Optic Interface 10/100/1000Base-T to 1000Base-SX(SC, MM) Smart Media Converter-220m/550m / 10/100/1000Base-T to 1000Base-LX (SC,SM) smart Media Converter- 10km: SC 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depend on SFP module: SFP 10/100/100Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm- 60km / 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 15km / 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km / 10/100/1000Base-T to 1000Base –LX9WDM) Smart Media Converter- X: 1550nm-60km: WDM
Optic Wavelength 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: 850nm 10/100/1000Base-T to 1000Base-LX (SC, SM) smart Media Converter- 10km: 1310nm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depend on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km / RX: 1550nm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km / RX: 1310nm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km / RX: 1550nm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km / RX: 1310nm
Launch Power (dBm) Max. 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -4dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -3 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km : -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km : +5 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km : -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km : +4 dBm
Launch Power (dBm) Min. 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -9.5 dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -9.5 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -9 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km : 0 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km : -9 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km : -1 dBm
Receive Sensitivity 10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -13.5 dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -14.4 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -21 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km: -25 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km: -21 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km: -25 dBm
Maximum Input Power 100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -18 dBm 10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -20 dBm 10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km: -3 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km: -2 dBm 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km: -2 dBm
Speed Twisted-Pair 10/20Mbps for Half / Full Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full Duplex
Speed Fiber-Optic 2000Mbps for Full Duplex
Cable Twisted Pair 10Base-T: 2-pair UTP Cat. 3, 4, 5, up to 100m 100Base-TX: 2-pair UTP Cat.5, up to 100m 1000Base-T: 4-pair STP Cat.5 up to 100m
Cable Fiber-optic Cable * 50/125µm multi mode fiber cable, up to 220/550m * 9/125µm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module)
LED Indicator * PWR (Green) * TP: 1000, LINK/ACT * Fiber: LINK/ACT
DIP Switch Fiber (Auto-negotiation / Manual), LFP (Disable/Enable)
Power Consumption 3.1 watts / 10BTU (maximum)
QAM TS-1000, IEEE 802.3ah terminal
Jumbo Frame size 9K
Power Input DC 5V /2A
Dimension (W x D x H) 81 x 94 x 26mm
Operating Environment Temperature: 0~50°C; 5~90% non-condensing
Storage Environment Temperature: -40~70°C; 5~90% non-condensing
Emissions FCC Class A, CE Class A
