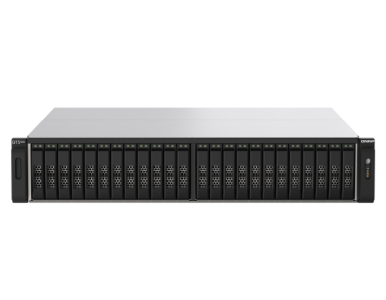

TS-h2490FU-7302P-128G-US - 24-Bay all-flash NAS, NVMe Gen3 x4, AMD EPYC 7302P 3.0GHz, 128GB RAM, 2 x 2.5GbE LAN, 4 x 25GbE SFP2
by QNAP
|
|
|
|
TS-h2490FU-7302P-128G-US_SUMMARY.html
- 24-bay U.2 NVMe all-flash NAS
- AMD EPYC™ 7002 series processor
- Up to 661K / 245K iSCSI 4K random read/write IOPS
|
|
|
TS-h2490FU-7302P-128G-US_DESCRIPTION.html
The TS-h2490FU-7302P-128G-US is armed with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Based on the "Zen 2" architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.
TS-h2490FU-7302P-128G-US.html
| |
| CPU |
AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
| CPU Architecture |
64-bit x86 |
| Encryption Engine |
(AES-NI) |
| System Memory |
128 GB RDIMM DDR4 ECC (8 x 16 GB) |
| Maximum Memory |
4 TB (16 x 256 GB) |
| Memory Slot |
16 x RDIMM DDR4 |
| Flash Memory |
5GB (Dual boot OS protection) |
| Drive Bay |
24 x 2.5-inch U.2 PCIe NVMe
|
| Drive Compatibility |
2.5-inch U.2 NVMe Gen 3 x4 solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| SR-IOV |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
2 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port |
4 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame |
|
| PCIe Slot |
5
Slot 1: PCIe Gen4 x4
Slot 2: PCIe Gen4 x8 or x4
Slot 3: PCIe Gen4 x4
Slot 4: PCIe Gen4 x8
Slot 5: PCIe Gen4 x16 or x8 *Slot 4 and Slot 5 are
preinstalled with 25GbE network adapters. Please reserve these slots for the 25GbE adapters for the
best performance.
**Slot 2 provides the width of PCIe Gen4 x8 when Slot 3 is not in use, and
provides the width of PCIe Gen4 x4 when Slot 3 is in use.
***Slot 5 provides the width of PCIe
Gen4 x16 when Slot 4 is not in use, and provides the width of PCIe Gen4 x8 when Slot 4 is in
use.
Card dimensions for PCIe slot 1：225 x 68.9 x 28.76 mm / 8.86 x 2.71 x 1.13 inches.
Card
dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Card dimensions
for PCIe slot 3：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot
4：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches.
Card dimensions for PCIe slot 5：225 x 68.9
x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will
not be used.
|
| USB 3.2 Gen 1 port |
2 |
| Form Factor |
Rackmount |
| LED Indicators |
HDD, Status, 10 GbE, LAN, storage expansion port status |
| Buttons |
Power, Reset |
| Dimensions (HxWxD) |
3.48 x 18.94 x 20.09 inch |
| Weight (Net) |
36.97 lbs |
| Weight (Gross) |
46.19 lbs |
| Operating Temperature |
0 - 40 °C (32°F - 104°F) |
| Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit |
1100W PSU(x2), 100-240Vac,
Max Wattage:
1100W@200-240Vac
850W@100-240Vac
|
| Power Consumption: Operating Mode, Typical |
277.64 W Tested with drives fully populated.
|
| Fan |
4 x 60mm, 12VDC |
| System Warning |
Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
10,000 |
|
