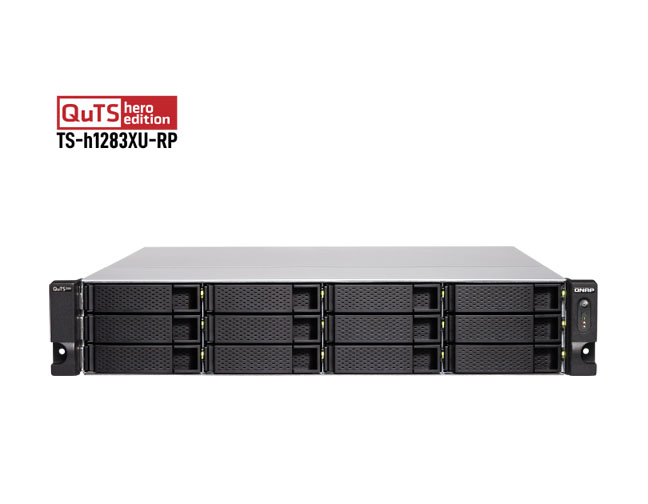

TS-h1283XU-RP-E2236-32G-US - 12-Bay QTS hero NAS, Intel Xeon E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz), 32 GB UDIM by QNAP
|
|
|
- DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.
- Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ adapter for bandwidth-demanding applications.
- PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
- SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.
- Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.
- QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
Mfg SKU # : | TS-h1283XU-RP-E2236-32G-US |
|
|
|
The QuTS hero NAS TS-h1283XU-RP-E2236-32G-US is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the brand new QuTS hero operating system that incorporates ZFS, the TS-h1283XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1283XU-RP helps your business achieve reliable service-level agreement performance, whether in a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
TS-h1283XU-RP-E2236-32G-US
CPU |
Intel® Xeon® E-2236 6-core/12-thread 3.4 GHz processor (burst up to 4.8 GHz) |
CPU Architecture |
64-bit x86 |
Floating Point Unit |
|
Encryption Engine |
(AES-NI) |
System Memory |
32 GB UDIMM DDR4 ECC (2 x 16GB) |
Maximum Memory |
128 GB (4 x 32 GB) |
Memory Slot |
4 x Long-DIMM DDR4 |
Flash Memory |
5GB (Dual boot OS protection) |
Drive Bay |
12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility |
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
Hot-swappable |
|
SSD Cache Acceleration Support |
|
Gigabit Ethernet Port (RJ45) |
4 |
10 Gigabit Ethernet Port |
2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port |
Jumbo Frame |
|
PCIe Slot |
4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU) Slot 3 and slot 4 are preinstalled with 10GbE network adapters |
USB 3.2 Gen 2 (10Gbps) Port |
2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
Form Factor |
2U Rackmount |
LED Indicators |
HDD 1-12, Status, LAN, storage expansion port status |
Buttons |
Power, Reset |
Dimensions (HxWxD) |
88.3 × 482 × 562 mm |
Weight (Net) |
11.75 kg |
Operating temperature |
0 - 40 °C (32°F - 104°F) |
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit |
500W(x2), 100-240V |
Power Consumption: Operating Mode, Typical |
105.12 W Tested with drives fully populated. |
Fan |
System fan: 2 x 60mm, 12VDC |
Sound Level |
40.6 db(A) |
System Warning |
Buzzer |
Max. Number of Concurrent Connections (CIFS) |
700 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
