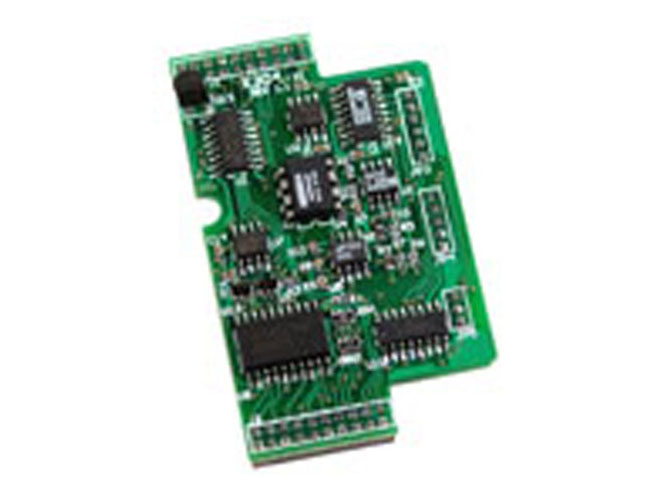

ICP DAS X305 - 7 analog inputs, 1 analog output, 2 digital inputs and 2 digital outputs
by ICP DAS
|
|
|
|
7 Channel A/D (±5V), 1 Channel D/A (±5V), 2 Channel D/I, and 2 Channel D/O Module
|
|
|
For use with 7188XB, 7188XG, 7188EX, and 7188EG controllers
| Analog Input |
| Input Channels |
7 |
| Input Type |
+/- 5V |
| Resolution |
12-bit |
| Sampling Rate |
1KHz Max(Read one channel) |
| Input Impedance |
50K Ohm |
| Over voltage Protection |
+/- 30VDC |
| Isolation Voltage |
Non-isolation |
| Analog Output |
| Output Channel |
1 |
| Output Type |
+/- 5V |
| Resolution |
12-bit |
| Output Capacity |
10mA |
| Isolation Voltage |
Non-isolation |
| Digital Output |
| Output Channels |
2 |
| Output Type |
Open-Collector (NPN) |
| Load Voltage |
+30VDC, Max |
| Load Current |
100mA, Max |
| Isolation Voltage |
Non-isolation |
| Digital Input |
| Input Channel |
2 |
| Input Type |
Sink, non-isolated channel with common ground |
| Off Voltage Level |
+1V max |
| On Voltage Level |
+3.5V ~ +30VDC |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 38 mm |
| Power requirement |
+5VDC |
| Environment |
| Environment with I-7188XC or μpac-7186 series Casing |
Operating Temperature : -25 ~ +75 ℃ |
| Storage Temperature : -40 ~ +80 ℃ |
| Relative Humidity : 5% to 90% Non-condensing |
|
|
