86M-2604D-T - ioPAC 8600 I/O module, 6 relays, channel LED, form A (N.O.) type
by MOXA
|
|
|
|
- 6 relays
- Channel LED
- Form A (N.O.) type
|
|
|

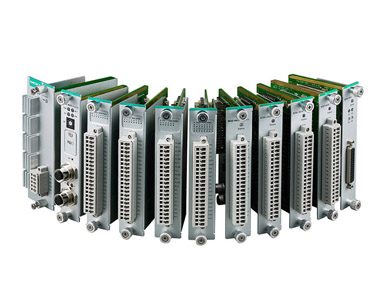

Moxa’s 86M series modules with ch-to-ch isolated DIs, ch-to-ch isolated DOs,
relays, and AOs provide more I/O options for the ioPAC 8600 series. Combined
with 85M modules, enough options are now available to allow users to select the
best I/O combination for their target application. All 86M modules are designed
for railway industry applications, and as such are compliant with EN 50121-3-2,
EN 50121-4, and EN 50155. In addition, the modules support a wide operating
temperature range of -40 to 75°C.
86M-2604D-T: 6 relays, channel LED, form A (N.O.) type
|
86M-2604D-T Specifications |
|
• Inputs
and Outputs |
|
Relays |
6 channels |
|
Isolation |
To System: 3k VDC or 2k Vrms |
|
• Relay |
|
Type |
Form A (N.O.) |
|
I/O mode |
DO or PWM |
|
Pulse Output Frequency |
0.33 Hz |
|
Contact Current Rating |
Resistive Load: 5 A @ 30 VDC, 250 VAC |
|
Relay On/Off Time |
10 ms (max.) |
|
Initial Insulation Resistance |
1000 mega-ohms (min.) @ 500 VDC |
|
Mechanical Endurance |
5,000,000 operations |
|
Electrical Endurance |
60,000 operations @ 5 A resistive load |
|
Contact Resistance |
100 milli-ohms (max.) |
|
• Physical
Characteristics |
|
Wiring |
I/O cable, 16 AWG (max.) |
|
Connector |
Spring-type terminal block |
|
• Environmental
Limits |
|
Operating Temperature |
-40 to 75°C (-40 to 176°F) |
|
• Power
Requirements |
|
Input Current |
127 mA @ 24 VDC |
|
• MTBF
(mean time between failures) |
|
Time |
4,173,843 hrs |
|
Standard |
Telcordia SR332 |
|
|
|
Common Specifications |
|
• Power
Requirements |
|
Input Voltage |
24 to 110 VDC (16.8 to 154 VDC) |
|
• Environmental
Limits |
|
Operating Temperature |
-40 to 75°C (-40 to 176°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Ambient Relative Humidity |
5 to 95% (non-condensing) |
|
Shock |
IEC 60068-2-27 |
|
Vibration |
IEC 60068-2-6 |
|
• Standards
and Certifications |
|
Safety |
UL 508 |
|
EMC |
EN 55022/24 |
|
EMI |
FCC Part 15 Subpart B Class A, CISPR 22 |
|
EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS:
80 MHz to 1000 MHz: 3 V/m
1400 MHz to 2100 MHz: 3 V/m
2100 MHz to 2700 MHz: 1 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L); |
|
Rail Traffic |
EN 50155 (essential compliance*), EN 50121-3-2, EN 50121-4
*Moxa defines “essential
compliance” to include those EN 50155 requirements that make products
more suitable for rolling stock railway applications. |
|
• Warranty |
|
Warranty Period |
5 years |
|
|
|
|
