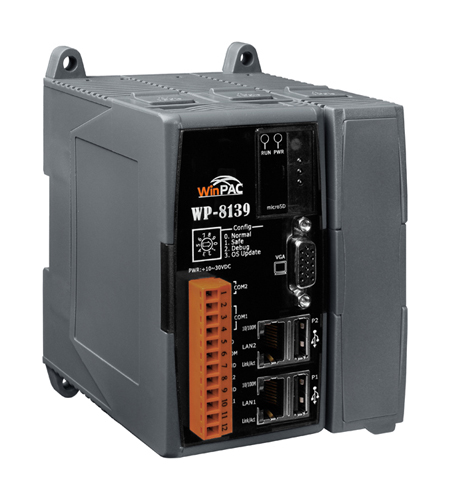

WP-8139 - 1 slot base Windows CE Indusoft Controller with high resolution VGA and one extra GPU
by ICP DAS
|
|
|
|
InduSoft based WinPAC-8139 with 1 I/O slots. PXA270 CPU 520MHz running Windows CE.NET 5.0 Operating System. 128 MB SDRAM, 128 MB Flash Memory, MicroSD (can support 16 GB microSD card). VGA, USB, Ethernet, RS-232, RS-485. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F)
|
|
|
Powered by a PXA270 CPU at 520MHz and Windows CE .NET 5.0 operating system running under the hood, the WinPAC WP-8139 is the second generation Windows CE based InduSoft PAC device of ICP DAS USA. It has multiple connectivity interfaces (VGA, USB, Ethernet, RS-232/485) and 1 single slots fit for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).
Windows CE 5.0 operating is what the WP-8139 is powered by, which offers quite a few advantages, such as hard real-time capability, fast boot speed, small core size, , achievable deterministic control, interrupt handling at a deeper level, and low cost. Using Windows CE 5.0 on the WinPAC-8139 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC and many other compatible programming languages.
- Built-in VGA Port
- I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
- Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
- Built-in Flash Disk
- Dual Watchdog Timer
- Dual Battery-Backup SRAM (512KB)
- Dual Ethernet Ports
- Redundant Power Input
- Ventilated Hosuing Design Allows Operationg Between +25°C ~ +75°C (-13°F ~ +167°F)
| System Software |
| OS |
Windows CE 5.0 |
| .Net Compact Framework |
2.0 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script, Embedded SQL server) |
| SDK Provided |
DLL for eVC, DLL for for Visual Studio.Net 2003/2005/2008) |
| Development Software |
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 6 |
| Non-InduSoft |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Security |
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x49 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| CPU Module |
| CPU |
PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM |
128 MB |
| Dual Battery Backup SRAM |
512 Kbytes (for 5 years data retain) |
| Flash |
128 MB (64, 63, 1) |
| EEPROM |
16 Kbytes |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| MicroSD |
WP-8x39: with one 2 GB microSD card (can support 16 GB microSD card) |
| RTC (Real Time Clock) |
Year-2000 compliance; seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079 |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| Programmable LED Indicator |
1 |
| Rotary Switch |
Yes (0-9) |
| DIP Switch |
- |
| VGA & Communication Ports |
| VGA |
WP-8x39: resolution: 1024 x 768, 800 x 600, 640 x 480; with one extra GPU. |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, LED indicators) |
| USB 1.1 (host) |
WP-8x39: 2 ports |
| COM 0 |
Internal communication with I-87K modules in slots |
| COM 1 |
RS-232 (to update firmware) (RXD, TXD and GND); Non-isolation |
| COM 2 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
| Isolation |
2500 VDC |
| COM 3 |
- |
| COM 4 |
- |
| I/O Expansion Slots |
| Slot Number |
1 slot |
| (For High Profile I-87K Modules Only) |
| Mechanical |
| Dimensions (W x L x H) |
95 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30°C ~ +85°C (-22°F ~ +185°F) |
| Ambient Relative Humidity |
5% ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.0A, 5V supply to CPU and backplane, 0.6A, 5V supply to I/O expansion slots, total 8 W |
| Consumption |
7.3 W (0.3 A @ 24 VDC) |
|
|
