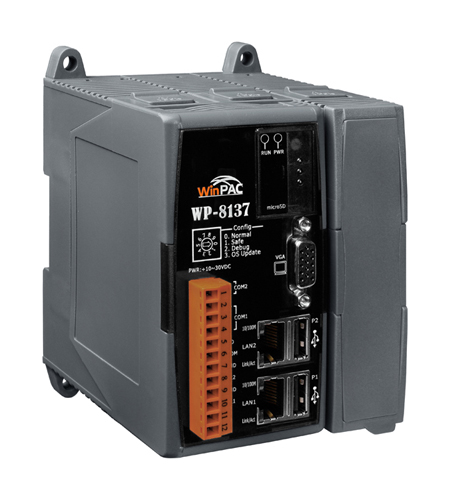

System Software |
OS |
Windows CE 5.0 |
.Net Compact Framework |
3.5 |
Embedded Service |
FTP Server, Web Server |
Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
Development Software |
ISaGRAF Software |
ISaGRAF Ver. 3 |
IEC 61131-3 standard |
Languages |
LD, ST, FBD, SFC, IL & FC
Support Soft-GRAF HMI : XP-8xx7-CE6, XP-8xx7-Atom-CE6, WP-8xx7/5xx7 and VP-2xW7/4xx7 PAC |
Max. Code Size |
1 MB |
Scan Time |
3 ~ 15 ms for normal program
15 ~ 50 ms for complex or large program |
Non-ISaGRAF |
Options: MS eVC++ 4.0 or VS.NET 2005/2008 (VB.NET, C#.NET) |
Web Service |
Web HMI |
PC running Internet Explorer can monitor/control PAC via Internet/modem |
Security |
Support three levels username and password protection. (high/middle/low) |
CPU Module |
CPU |
PXA270, 520 MHz |
SDRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB; data valid up to 5 years (for retain variables) |
Flash |
128 MB |
EEPROM |
16 KB |
Memory Expansion |
microSD socket with one microSD card (support up to 32 GB) |
RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
Dual Watchdog Timers |
Yes |
Programmable LED Indicator |
1 |
Rotary Switch |
Yes (0 ~ 9) |
DIP Switch |
- |
VGA & Communication Ports |
VGA |
Yes
640 x 480, 800 x 600, 1024 x 768 |
Ethernet |
RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, LED indicators) |
USB 1.1 (Host) |
2 |
COM 0 |
Internal communication with the high profile I-87K series modules in slots |
COM 1 |
RS-232 (to update firmware) (RxD, TxD and GND); non-isolated |
COM 2 |
RS-485 (Data+, Data-) with internal self-tuner ASIC;
2500 VDC isolated for WP-8137 and WP-8147; 3000 VDC isolated for other models. |
COM 3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+ and Data- for RS-485);
non-isolated |
COM 4 |
- |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
I/O Expansion Slots |
Slot Number |
1
|
Note: For High Profile I-8K and I-87K Modules Only |
Mechanical |
Dimensions (W x L x H) |
95 mm x 132 mm x 111 mm |
Installation |
DIN-Rail or Wall Mounting |
Environmental |
Operating Temperature
|
-25°C ~ +75°C (-13°F ~ +167°F) |
Storage Temperature |
-30°C ~ +80°C (-22°F ~ +176°F) |
Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
Power |
Input Range |
+10 ~ +30 VDC |
Isolation |
1 kV |
Redundant Power Inputs |
Yes, with one power relya (1 A @ 24 VDC) for alarm |
Capacity |
8 W |
Power Consumption |
7.3 W |
Protocols (Note that certain protocols require optional device) |
NET ID |
1 ~ 255, User-assigned by software |
Modbus TCP/IP Master |
Link to a max. of 100 devices that support the Standard Modbus TCP/IP Slave protocol |
Modbus RTU/ASCII Master |
A max. of 10 ports: COM1 ~ 14 (*). (To connect to other Modbus Slave devices)
Support Multi-ports. |
Modbus RTU Slave |
A max. of 5 ports: COM1, one of COM2/3, COM4 ~ 8 (*).
(For connecting ISaGRAF, PC/HMI/OPC Server and HMI panels.) |
ModbusTCP/IP Slave |
Two Ethernet ports (LAN1 & LAN2) support up to 32 connections. If the PAC uses 1 connection to connect each PC/HMI, it can connect to up to 16 PCs/HMIs; If the PAC uses 2 connections to connect each PC/HMI, it can connect to up to 32 PCs/HMIs; If one of the Ethernet port malfunctions, the other one can still be used to connect to the PC/HMI. |
Web HMI Protocol |
Ethernet Ports for connecting a PC running Internet Explorer. |
User-defined Protocol |
Custom protocols can be applied at COM1~14 using Serial communication function blocks. (*) |
I-7000 & I-87k RS-485 Remote I/O |
One of COM2 ~ 3 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards, or RU-87Pn + I-87K High Profile I/O boards as remote I/O. A max. of 255 I-7000/87K remote I/O modules can connect to one PAC. |
M-7000 Series Modbus I/O |
A max. of 10 RS-485 ports (COM1 ~ 14) (*) can support M-7000 I/O.
Each port can connect up to 32 M-7000 Modules. |
Modbus TCP/IP I/O |
LAN2 supports ICP DAS Ethernet I/O: I-8KE4-MTCP and I-8KE8-MTCP. If LAN2 malfunctions, it will automatically switch to LAN1 to continuously work. (The IP address for LAN1 and LAN2 should be set in the same IP domain) |
FRnet I/O |
Enable a max. of 8 pcs. I-8172W boards in slot 0~7 to be used to connect to FRnet I/O modules, such as FR-2053, FR-2057, FR-32R, FR-32P. Each I-8172W board can link to a max. of 256 DI plus 256 DO channels. |
Send Email |
Provide functions to send email with a single attached file via the Ethernet port. |
Ebus |
Used to exchange data between ICP DAS ISaGRAF Ethernet PACs via the Ethernet port. (LAN2 Port only) |
SMS: Short Message Service |
WP-84x7/88x7’s COM4/5 and WP-81x7’s COM1/COM5 can link to a GSM Modem to support SMS. The user can request data/control the controller via a cellular phone. The controller can also send data and alarms to the user’s cellular phone. (*)
Optional GSM Modem: GTM-201-RS232 (850/900/1800/1900 GSM/GPRS External Modem) |
MMICON/LCD |
COM4 or COM5 supports the ICP DAS MMICON. (*) |
UDP Server & UDP Client: Exchange Message & Auto-report |
LAN1 or LAN2 supports the UDP Server and UDP Client protocols allowing messages to be sent/received to/from a PC/HMI or other device. For example, data can be automatically reported to the InduSoft's RXTX driver. |
TCP Client: Exchange Message & Auto-report |
LAN1 or LAN2 supports the TCP Client protocol allowing messages to be sent/received to/from a PC/HMI or other device that supports the TCP server protocol. Ex: automatically report data to InduSoft's RXTX driver, or to connect a location camera. |
GPRS/SMS |
Enable the I-8212W (2G/3G) card allowing short messages to be sent/received to/from or to access a dial up connection to link to the Internet and using a GPRS connection to send an email or communicate with remote stations using the "FTP Client"or the "TCP Client"/"UDP Server"/"UDP Client" protocols. |
SQL Client |
Support for the SQL Client function that allows data to be written (or read from) a Microsoft SQL Server (2000 SP3, 2005, 2008). |
Hot-Swap and Redundant System |
This redundant system has setup two "Active IP" address point to the active LAN1 and LAN2 ports always. One or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which WP-8xx7 is currently active.
Moreover, the new redundant system can integrate with the RU-87P4/87P8 Expansion Unit plus the
I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system. |
CAN/CANopen |
COM1, COM3 ~ COM14 (*) can connect to one I-7530 (converter: RS-232 to CAN) to support CAN/CANopen devices and sensors. One WP-8xx7 supports a max. of 10 RS-232 ports to connect a max. of 10 I-7530. |
CANopen Master |
Enable the I-8123W CANopen Master card to connect to other CANopen Slave devices. |
HART Solutions |
Enable I-87H17W modules in slots 0 to 7 used to communicate with other HART devices |
FTP Client |
Enable the FTP Client to upload files from the PAC to a remote FTP server on a PC.
The Soft-GRAF g_Alarm and g_Logger1 HMI objects also support FTP Client. |
Software-GRAF HMI |
Provide support for the Soft-GRAF HMI. The user can design the HMI screen using the Soft-GRAF Studio on the PC and then download it to the PAC to display the HMI on the PAC. |
Optional I/O Functions |
PWM |
High Speed PWM Module |
I-7088, I-8088W, I-87088W:
8-ch. PWM outputs, software support 1 Hz ~ 100 KHz (non-continuous), duty: 0.1 ~ 99.9% |
DO Module as PWM |
8-ch. max. 250 Hz max. For Off=2 & On=2 ms .
Output square wave: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms.
Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W. (Relay Output boards cannot generate fast square wave) |
Counter, Encoder, Frequency |
Parallel DI Counter |
8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms.
Optional DI boards: I-8040W, 8040PW, 8042W, 8046W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W. |
Serial DI Counter |
Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit)
Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W. |
Remote DI Counter |
All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535 |
High Speed Counter |
I-87082W: 100 kHz max. 32 bit;
I-8084W : 250 kHz max. 32 bit |
Encoder |
I-8093W: 3-axis Encoder Module, max. 1M Hz for quadrant input mode, max. 4M Hz for
pulse/direction and cw/ccw input mode.
I-8084W: 250 kHz max., 4-ch encoder, can be pulse/direction, or Up/Down or A/B phase
(Quad. mode); Not support Encoder Z-index. |
Frequency |
I-87082W: 2-ch, 1 Hz ~ 100 kHz;
I-87088W: 8-ch, 0.1 Hz ~ 500 kHz;
I-8084W : 8-ch, 1 Hz ~ 250 kHz; |
Motion |
Motion Control |
Can be integrated with one I-8091W (2-axis) or two I-8091W (4-axis) |
* Note: The COM5 ~ COM14 ports are located in the expansion boards if they are installed in slots 0 ~ 7 of WP-8xx7.
WP-8137/8147 has no COM3 & COM4.
* ISaGRAF FAQ: www.icpdas-usa.com - ISaGRAF Soft-Logic PAC
* ICP DAS recommends using NS-205/NS-208 or RS-405/408 (Ring Switch) Industrial Ethernet Switches. |
