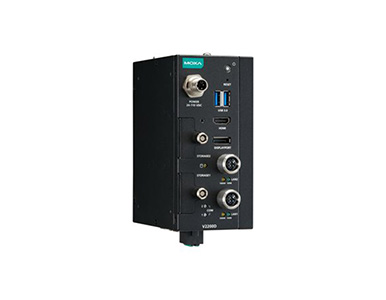

Moxa V2202D-AL4-CT-T - x86 computer with Intel Atom x7433RE processor, 2 1GbE ports, 2 COM ports, 4 Dls, 4 DOs, 1 HDMI port, 3 M
by MOXA

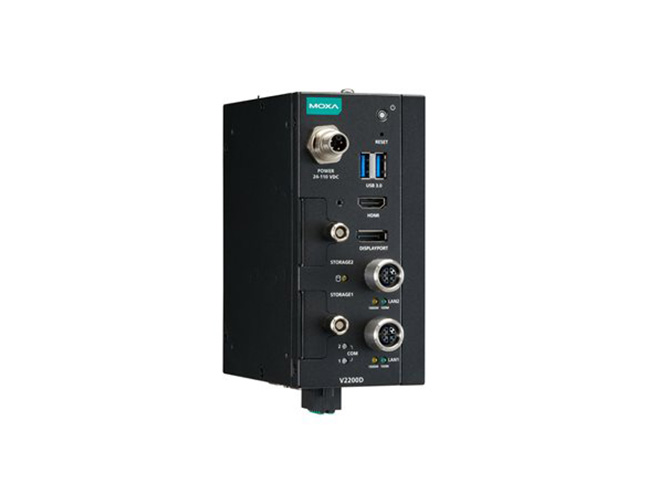

Moxa V2202D-AL4-CT-T

The V2200D Series embedded computers are built around an Intel Atom® Amston Lake x7433RE processor and come with up to 32 GB DDR4 memory, one internal M.2 2242 M-key storage slot, and two front-accessible easy-swappable M.2 2280 M-key storage slots for flexible and reliable data storage. The computers comply with railway requirements for operating temperature, power input, and EMC, making them suitable for onboard and wayside applications in harsh railway environments. For enhanced data protection, the front-accessible storage slots are equipped with a lock, allowing only authorized personnel to access the storage devices. The V2200D computers provide essential industrial interfaces, including 2 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 4 digital inputs, 4 digital outputs, 2 USB 3.0 ports, 1 HDMI, and 1 DisplayPort, enabling seamless integration with onboard systems and field devices. A built-in TPM 2.0 module further strengthens platform integrity and provides hardware-based protection against unauthorized access and tampering.

Specifications

Computer

• CPU

  • Intel Atom® x7433RE processor (quad-core, 6M, 3.40 GHz)

• System Memory Slot

  • SODIMM DDR4 slots x 1 (up to 32 GB)

• Storage Slot

  • (internal) M.2 M key 2242 slots x 1
    (external for expansion) M.2 M key 2280 slots x 2

• Supported OS

  • Windows 10 IoT Enterprise LTSC 2021
    Windows 11 IoT Enterprise LTSC 2024
    Linux:
    Debian 12
    Ubuntu 22.04 (driver)
    Moxa Industrial Linux 4
    See www.moxa.com/MIL

Computer Interface

• Ethernet Ports

  • Auto-sensing 100/1000 Mbps Ethernet (M12 X-coded inner push-pull connector) x 2

• Serial Ports

  • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

• Digital Input

  • DIs x 4

• Digital Output

  • DOs x 4

• Video Output

  • HDMI x 1, HDMI connector (type A)
    DisplayPort x 1

• USB 3.0

  • USB 3.0 hosts x 1, type-A connectors

• TPM

  • TPM v2.0

Digital Inputs

• Connector

  • Screw-fastened Euroblock terminal

• Sensor Type

  • Dry contact
    Wet contact (PNP)

• Dry Contact

  • Logic 0: Short to GND
    Logic 1: Open

• Wet Contact (COM to DI)

  • Logic 0: 10 to 30 VDC
    Logic 1: 0 to 3 VDC

• Isolation

  • 3k VDC

Digital Outputs

• Connector

  • Screw-fastened Euroblock terminal

• Current Rating

  • 200 mA per channel

• I/O Type

  • Sink

• Voltage

  • 0 to 30 VDC

• Isolation

  • 3k VDC

Serial Interface

• Connector

  • DB9 male

• Baudrate

  • 50 bps to 115.2 kbps

• Isolation

  • 2k VDC

• Flow Control

  • RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

• Parity

  • None, Even, Odd, Space, Mark

• Stop Bits

  • 1, 1.5, 2

Serial Signals

• RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w

  • Data+, Data-, GND

• RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

LED Indicators

• System

  • Power x 1
    Storage x 1

• LAN

  • 2 per port (10/100/1000 Mbps)

• Serial

  • 1 per port (Tx, Rx)

Power Parameters

• Power Connector

  • M12 K-coded male

• Input Voltage

  • 24 to 110 VDC

• Power Consumption

  • 40.8 W (max.)

Physical Characteristics

• Housing

  • Aluminum

• IP Rating

  • IP30

• Installation

  • Wall mounting (default), DIN-rail mounting, desk mounting

• Protection

  • PCB conformal coating

Environmental Limits

• Operating Temperature

  • -40 to 70°C (-40 to 158°F)

• Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Railway

  • EN 50155
    EN 50121-4
    EN 50121-3-2

• Railway Fire Protection

  • EN 45545-2

• Safety

  • EN 62368-1
    IEC 62368-1
    UL 62368-1

• Shock

  • IEC 60068-2-27
    IEC 61373
    EN 50155

• Vibration

  • IEC 60068-2-64
    IEC 61373
    EN 50155

Declaration

• Green Product

  • RoHS, CRoHS, WEEE

MTBF

• Time

  • 1,318,292 hrs

• Standards

  • Telcordia (Bellcore), GB
