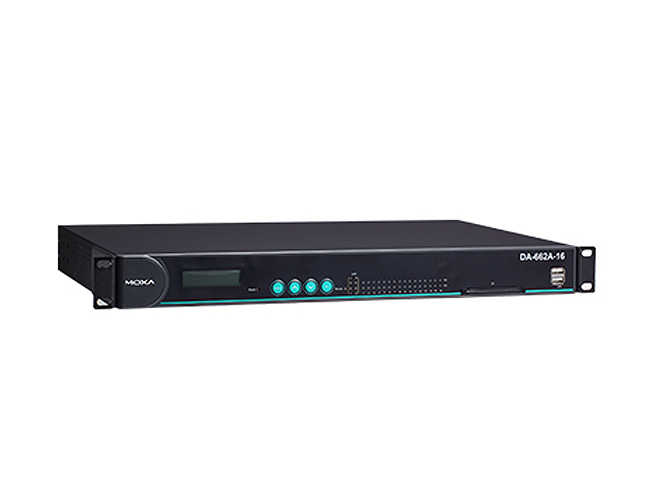

DA-662A-8-LX - RISC-based 19-inch rackmount computer w 8 serial ports, 4 LANs, USB, Linux OS
by MOXA
|
|
|
|
- MoxaMacro 500 MHz processor
- 128 MB RAM onboard, 32 MB flash
- 8 to 16 software-selectable RS-232/422/485 serial ports
- 8 to 16 jumper-configurable 1/150 kΩ pull low/high and 120 ohm termination resistors
- 15 kV ESD protection for all serial signals
- Quad 10/100 Mbps Ethernet ports
- USB and CF slots for storage expansion supported
- Standard 19-inch rackmount installation, 1U height
- Wide range of power input voltages from 100 to 240 VAC
- LCM display and keypad for HMI
- Ready-to-Run Linux OS platform
- Robust, fanless design
- Isolated serial port protection models available
|
|
|
The DA-662A-8-LX RISC-based, ready-to-run embedded computers are designed for industrial data acquisition applications. The computers have 8 to 16 RS-232/422/485 serial ports, 4 Ethernet ports, and 2 USB 2.0 ports, all based on the MoxaMacro communication processor. In addition, the DA-662A-I-8/16-LX’s serial ports come with high level interference protection. The housing is a standard 1U, 19-inch wide rack-mounted rugged enclosure. The robust, rack-mountable mechanism design provides the hardened protection needed for industrial environment applications, and makes it easy for users to install the DA-662A-8-LX computers on a standard 19-inch rackmount. The DA-662A computers are ideal for applications that require a distributed embedded technology, such as SCADA systems, plant floor automation, and power electricity monitoring applications.
| Hardware Specifications |
| • Computer |
| CPU |
MoxaMacro 500 MHz |
| OS |
Embedded Linux (pre-installed) |
| DRAM |
128 MB onboard |
| Flash |
32 MB onboard |
| • Ethernet Interface |
| LAN |
Auto-sensing 10/100 Mbps ports (RJ45) x 4 |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Serial Standards |
8 to 16 RS-232/422/485 ports, software selectable (8-pin RJ45) |
| ESD Protection |
8 kV contact, 15 kV Air ESD protection for all signals |
| Surge Protection |
2 kV line-to-line and 4 kV line-to-ground surge protection, 8/20 μs waveform (DA-662A-I-8/16-LX only) |
| Insulation |
500 V (DA-662A-I-8/16-LX only) |
| Isolation |
2 kV digital isolation (DA-662A-I-8/16-LX only) |
| Termination Resistor |
120 ohm, jumper selectable |
| Console Port |
RS-232 (all signals), RJ45 connector |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 Kbps (supports non-standard baudrates; see user’s manual for details) |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND(DA-662A-I-8/16-LX only: TxD, RxD, RTS, CTS, GND) |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • LEDs |
| System |
OS Ready |
| LAN |
10/100M x 4 |
| Serial |
TxD, RxD (16 of each) |
| • Mini Screen with Push Buttons |
| LCD Panel |
Liquid Crystal Display on the case, 2 x 16 text mode |
| Push Buttons |
Four membrane buttons for convenient on-site configuration |
| • Physical Characteristics |
| Housing |
SECC sheet metal (1 mm) |
| Weight |
4.3 kg (9.56 lb) |
| Dimensions |
Without ears: 440 x 45 x 237 mm (17.32 x 1.77 x 9.33 in)
With ears: 480 x 45 x 237 mm (18.90 x 1.77 x 9.33 in) |
| Mounting |
Standard 19-inch rackmount |
| • Environmental Limits |
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature |
-20 to 80°C (-4 to 176°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
1 g @ IEC-68-2-6, sine wave (resonance search), 5-500 Hz, 1 Oct/min, 1 Cycle, 13 mins 17 sec per axis |
| • Power Requirements |
| Input Voltage |
100 to 240 VAC auto ranging(47 to 63 Hz for AC input) |
| Power Consumption |
20 W |
| • Standards and Certifications |
| Safety |
UL 60950-1 |
| EMC |
EN 61000-6-2/6-4 |
| EMI |
CISPR 22, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
IEC 61000-4-6 CS: Signal: 3 V/m
IEC 61000-4-8 1 A/m
IEC 61000-4-11 |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) |
| Time |
DA-662A-8-LX: 272,913 hrs
DA-662A-16-LX: 177,580 hrs
DA-662A-16-DP-LX: 177,260 hrs
DA-662A-I-8-LX: 268,332 hrs
DA-662A-I-16-LX: 189,455 hrs |
| Standard |
Telcordia (Bellcore) Standard TR/SR |
| • Warranty |
| Warranty Period |
5 years |
| Details |
See www.moxa.com/warranty |
| Software Specifications |
| • Linux |
| OS |
Linux 2.6.38.8 |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| File System |
JFFS2 (on-board flash) |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv1, ICMP, ARP, HTTP, CHAP, PAP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE, SNMP v1/v2, SSL, OpenVPN |
| Internet Security |
iptables firewall |
| Dial-up Networking |
PPP Daemon for Linux that allows Unix machines
to connect to the Internet through dialup lines, using the PPP protocol,
as a PPP server or client. Works with ‘chat’, ‘dip’, and ‘diald’, among
(many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell). |
| File Server |
Enables remote clients to access files and other resources over the network |
| Watchdog |
Features a hardware function to trigger system reset in a user specified time interval (Moxa API provided) |
| Application Development Software |
• Moxa API Library (Watchdog timer, LCM, keypad, Moxa serial I/O control)
• GNU C/C++ cross-compiler
• GNU C library |
|
|
