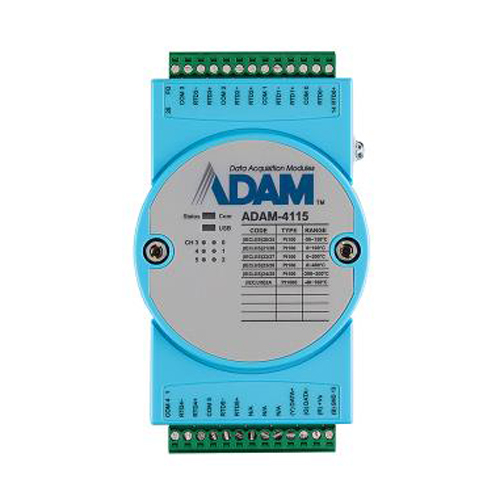

Advantech ADAM-4115-C - Robust 6-Ch RTD Input Module
by Advantech
|
|
|
|
The ADAM-4115 6-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000, Ni50, Ni508, and Balco 500 series.
- Robust 6 channels RTD input module
- Broader operating temperature range: -40 ~ 85°C
- Broader power input Range: +10~+48 VDC
- Higher noise immunity: 4 kV surge protection on power inputs, 4 kV EFT, and ESD (8kV Air, 6kV contact) protection
- Online firmware update
|
|
|
Advantech ADAM-4115-C
The ADAM-4115 6-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000, Ni50, Ni508, and Balco 500 series.
- Robust 6 channels RTD input module
- Broader operating temperature range: -40 ~ 85°C
- Broader power input Range: +10~+48 VDC
- Higher noise immunity: 4 kV surge protection on power inputs, 4 kV EFT, and ESD (8kV Air, 6kV contact) protection
- Online firmware update
Advantech ADAM-4115-C Specification
- Certification: CE, FCC
- Connectors: 2 x plug-in terminal blocks
- Power Consumption: 1.2 W@ 24VDC
- Protocols: ASCII command, Modbus/RTU
- Interface: RS-485, Micro USB
- Channels: 6
- Operating Temperature: -10~70ºC
|
|
|
|
