Advantech AMAX-4817-B2

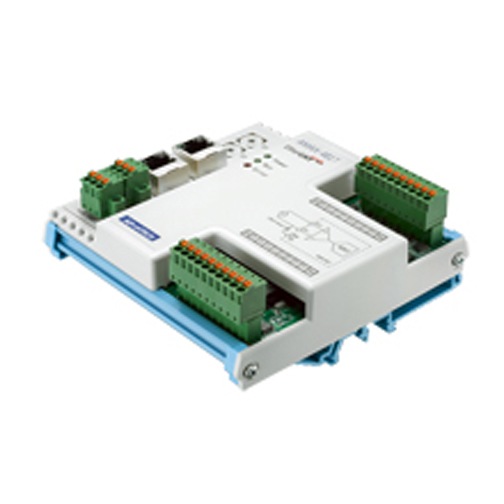

Advantech AMAX-4817-B2 - 8-ch AI EtherCAT Remote I/O Module
by Advantech

8-ch, 16-bit Isolated Analog Input EtherCAT Remote I/O Module

Suitable for EtherCAT networks
8-ch, 16-bit analog input channels with 2,500 VDC isolation
±275 V high common-mode voltage range
Quick removable European type connector
Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
Two rotating switches for up to 256 slave IDs

Description
Specification
Datasheet

Advantech AMAX-4817-B2

AMAX-4817 is an industrial-grade remote I/O SubDevice module equipped with the EtherCAT protocol. European-type pluggable terminal blocks facilitate module setup and maintenance, while the compact size and support for DIN-rail mounting ensure easy installation in cabinet configurations. For safe and reliable operation, all of the 8 analog input channels are protected by a 2,500 VDC isolation circuit.
