Advantech AMAX-4270-AE - 4-CH Trigger / 4-CH Latch EtherCAT SubDevice
by Advantech

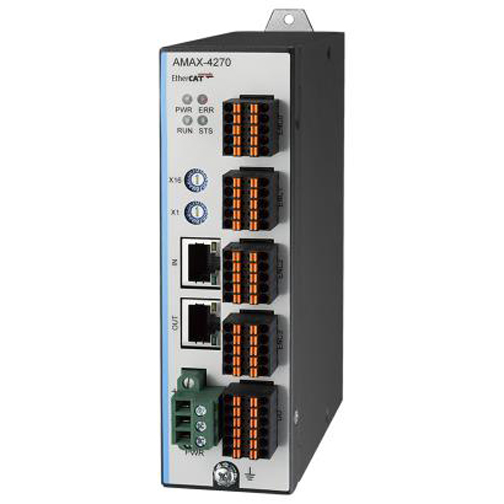

Advantech AMAX-4270-AE

4-channel High Speed Trigger and Latch EtherCAT Module

• 4-channel 32-bit encoder counters
• Encoder input mode : CW/CCW , Pulse/Direction, A/B Phase
• Encoder input signal : A, B, Z
• Encoder input frequency : 5 MHz (Maximum)
• 4-channel trigger DO for position compare
• Trigger output frequency : 10 kHz; latch input frequency : 10kHz
• Trigger output mode : sink, source, TTL
• Supports trigger delay time setting for each channel
• 4-channel latch DI for position latch
