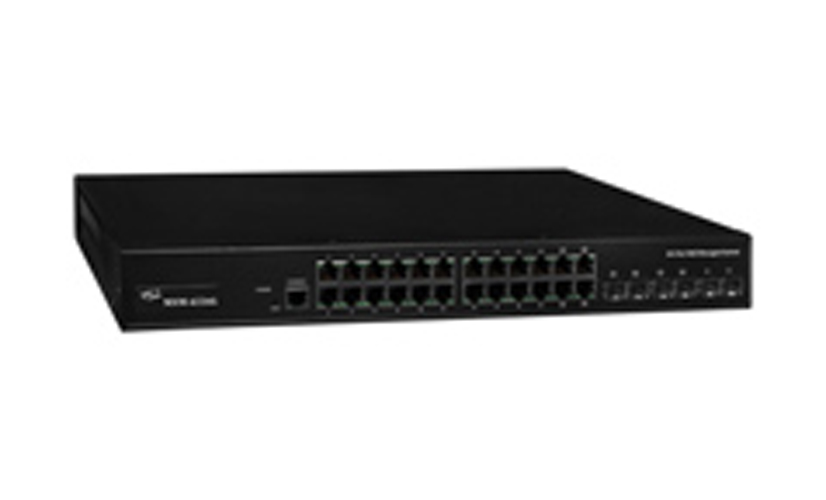

MSM-6226-G - 20-Port 10/100/1000Base-T + 4 TP/(100/1G) SFP Combo + 2 (100/1G) SFP L2 Plus Managed Switch (9-pin Female D-sub & R by ICP DAS
|
|
|
20-Port 10/100/1000 Base-T + 4 Combo 100/1000 TP/SFP Port + 2 SFP Port L2 Managed Switch, supports operating temperatures from 0°C ~ 50°C
|
|
|
MSM-6226G is a L2 Managed Switch that meets all IEEE 802.3ab/u/x/z Gigabit, Gigabit Ethernet and Ethernet specifications. It provides 20 gigabit Ethernet ports (10/100/1000 Mbps TP) , 4 combo TP/SFP ports and 2 SFP ports.
The switch can be managed through a RS-232 serial port via direct connection, or through an Ethernet port using a Telnet or Web-Based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon to the switch to monitor, configure and control each port activity in a user-friendly way. The overall network management is enhanced and the network efficiency is also improved to accommodate high bandwidth applications. In addition, the switch features comprehensive and useful functions such as DHCP Option 82, QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON and IGMPv3 Snooping capability via the intelligent software. It is suitable for both Metro-LAN and office applications.
The switch also supports power saving for reducing the power consumption with its Power Management technique. It could efficiently save the switch power with automatically detecting the client idle and cable length to provide different power.
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- L2+ features provide better manageability, security, QoS, and performance
- IPv6 and s-Flow supports
- Supports IGMPv3 snooping and IGMP Proxy
- IEEE 802.3z Gigabit Ethernet
- Dual speed SFPs for FE or GbE fiber uplink
- 802.3az Energy Efficient Ethernet standard
- Port Mirroring helps supervisor monitoring network
Technology |
Standards |
Port Mirroring helps supervisor monitoring network |
IEEE 802.1Q tag-base VLAN for performance |
IEEE 802.1X Access Control improve network security |
IEEE 802.1D Compatible, IEEE802.1w Rapid Spanning Tree & IEEE802.1s Multiple Spanning Tree |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) |
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 |
Unknown Unicast/Broadcast/Multicast storm control |
IP-MAC-Port binding for LAN security |
QCL Based on Application traffic for QoS and rate limitation management |
Support IGMPv3 snooping and IGMP Proxy |
Support DHCP snooping (DHCP option 82) |
ACL Based on Ethernet Type/ARP/IPv4 for packets permit or deny, rate limitation and port copy |
Support "power saving" for Green Ethernet requirement |
Support LLDP (Link Layer Discovery Protocol) provides a standards-based method for enabling switches to advertise themselves. |
|
MAC Addresses |
8K |
Processing Type |
store & forwarding |
Memory Bandwidth |
Bandwidth: 52Gbps |
Frame Buffer Memory |
4Mbits |
Protocol |
VLAN, QoS, Port Trunk, SMTP, TELNET, SNMP, IGMP, IEEE802.1X, LLDP/SNMPv1/v2c/v3 |
MIB |
MIB-II, Ethernet-like MIB , Bridge MIB,RMON MIB statistics Group 1,2,3,9 |
Interface |
RJ-45 Ports |
20 ports 10/100/1000 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
UTP/SFP Combo |
4 ports combo 100/1000 BAST-T/SFP slots |
SFP |
2 ports 100/1000Mbps SFP Fiber Module slots |
LED Indicators |
POWER, TP Port LED , SFP Port LED |
Ethernet Isolation |
2KVDC Isolation |
Serial Port |
RS-232 (TxD, RxD and GND); Non-isolation |
Frame Ground for EMS Protection |
EMS Requirements:
IEC-61000-4-2 IEC-61000-4-3 IEC-61000-4-4 IEC-61000-4-5 IEC-61000-4-6 IEC-61000-4-8 IEC-61000-4-11 |
Power |
Input Voltage Range |
Voltage: 100 ~ 240 VAC |
Power Consumption |
15.61 W |
Frame Ground for EMS Protection |
Yes |
Mechanical |
Casing |
Metal |
Environmental Rating |
IP20 |
Dimensions (W x L x H ) |
442mm x 170mm x 44mm |
Installation |
Wall mounting, 19'' rackmountable,brackets included |
Environmental |
Operating Temperature |
0 °C ~ 50 °C |
Environmental Rating |
-20 °C ~ 70 °C |
Ambient Relative Humidity |
10 % ~ 90 % RH |
|
|
