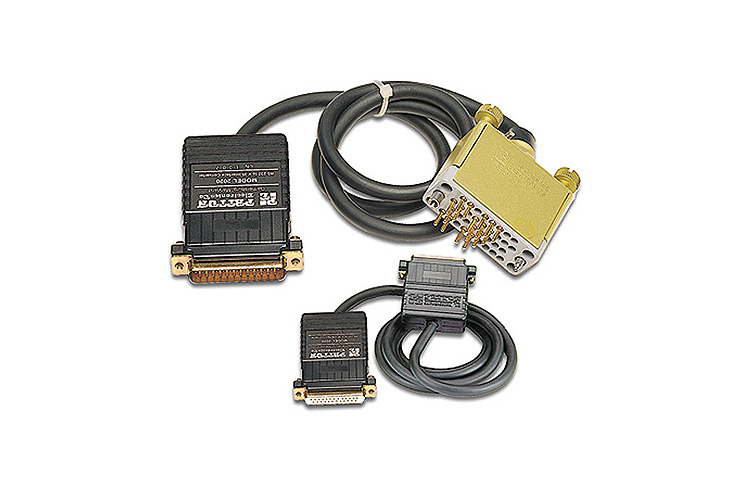

The Patton Model 2020F-F solves one of the most common problems in WAN connectivity-connecting sync RS-232 hardware to sync V.35 hardware. And the Model 2020 series offers many different models to choose from.
The Model 2020N is the perfect solution for converter applications that do not require a built-in cable. It has all the features of the Model 2020 series contained in an ultra-miniature package.
Format: Synchronous, transparent to protocol, full or half duplex; passes all appropriate control signals
Data Rates: Up to 384 kbps
Clocking: Supplied by the connected devices
Connectors: DB-25 male or fem. on RS-232 side, M/34 male or fem. on V.35 side
Configuration: DTE-to-DCE or DCE-to-DTE, strap selectable
Regulatory Approvals: FCC 15A, UL, CE, EN60950
