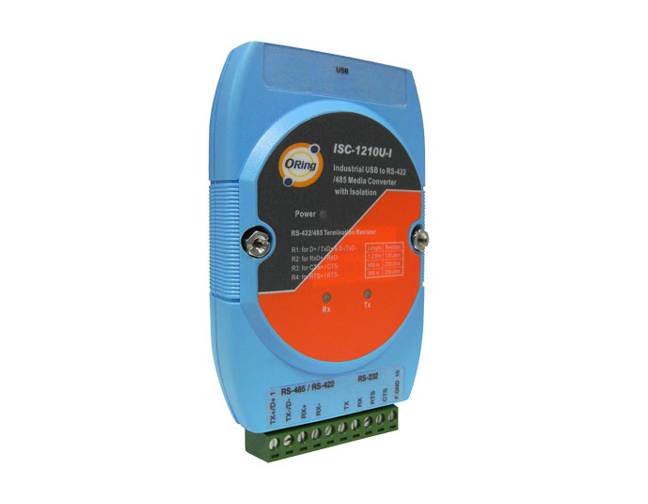

The ISC-1210U-I / ISC-1310U-I converter is an intelligent, stackable expansion module that connects to a PC USB port or USB Hub via the Universal Serial Bus(USB) port, providing one High-Speed RS-232/RS-422 or RS-485 serial port(jumper-less). The ISC-1210U-I / ISC-1310U-I features easy connectivity for traditional serial devices. The RS-232 standard supports full-duplex communication and handshaking signals (such as RTS, CTS) and the RS-485 control is completely transparent to the user and software written for half-duplex operation without any modification. The ISC-1210U-I / ISC-1310U-I's opto-isolators provide 3000 VDC of isolation to protect the host computer from destructive voltage spikes on the RS-232/RS-422 and RS-485 data lines. ISC-1210U-I / ISC-1310U-I also offer internal surge-protection on data lines. The internal high-speed transient suppressors on each data line protect the modules from dangerous voltages levels or spikes. In addition, the ISC-1210U-I / ISC-1310U-I module derives the power from USB port and doesn’t need any aid of external power adapter.
| Physical Ports |
|
| USB V1.1 Port |
1 |
| Serial Port |
RS-422/485 |
| Serail Connector |
10-pin terminal block |
| Baud Rate |
300 to 115.2Kbps |
| Signals |
RS-422 : TX+, TX-, RX+, RX-, RTS+, RTS-, CTS+, CTS-
RS-485 : Data+, Data- |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 1 |
| TxD Indicator |
Green LED x 1 |
| RxD Indicator |
Red LED x 1 |
| Power |
|
| Redundant Input Power |
From USB bus power (self power) |
| Power Consumption (Typ.) |
0.65 Watts |
| Protection |
|
| Isolation |
3000 VDC |
| Driver Support |
|
| Operation System |
Windows 95/98/ME/2000/XP, Linux |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
71.2(W) x 25.3(D) x 100.6(H) mm (2.8x1x3.96 inch.) |
| Weight (g) |
130g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
|
