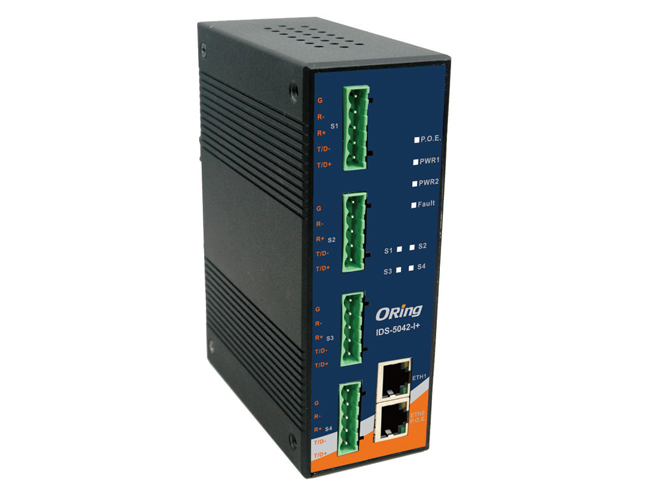

IDS-5042-I+
- Operating Modes : Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
- Redundant multiple host devices :
- 5 host devices : Virtual COM, TCP Server, TCP Client mode
- 4 IP ranges : UDP
- NAT Pass-Through : the user can manage IDS-5042-I+ through NAT router
- Security : SSL data encryption ; secured management by HTTPS and SSHIP Access
IP White List
- Internet Communication : PPPoE authentication
- Update DNS Hostname : DDNS
- Dual redundant Ethernet port support redundant mode(Recovery time < 10ms)
- Ethernet switch mode enable Daisy Chain
- Event Warning by Syslog, Email, SNMP trap, and Beeper
- Configurable by Web-based and Windows utility (DS-Tool)
- 2KV isolation for RS422/485 serial ports
- 1KV isolation for PoE P.D. port
- Various Windows O.S. supported :
Windows NT/2000/ XP/ 2003/VISTA(32/64bit)/Windows 7(32/64bit)
|
|
|
IDS-5042-I+ is an innovative secure 4-port RS-422/485 to 2 ports LAN secure
device server with isolation featuring the standard features of device server,
such like TCP/IP interface and versatile operation modes: Virtual Com, Serial
Tunnel, TCP Server, TCP Client, UDP. In addition, the Windows utility, DSTool,
could configure multiple devices and set up the mappings of Virtual Com. The
features of NAT Router Pass-Through, DDNS, and PPPoE make it more convenient for
administrators to configure ORing’s device servers through NAT router from
different IP domains or Internet via modem remotely. On the other hand,
IDS-5042-I+ can simultaneously transfer data up to 5 redundant host PCs to aovid
Ethernet connection breakdown or any host PC fails. Further, IDS- 5042-I+
features HTTPS, SSH, and SSL encryption to assure the security of critical data
transmission.
IDS-5042-I+ supports RS-422/485 and provides dual redundant power inputs,
12~48 VDC, on terminal block to guarantee a non-stop operation. RS- 422/485
serial ports are with 2KV isolation. Further, IDS-5042-I+ features PoE P.D.
(Power Device) function, compliant with IEEE802.3af standard, with 1kv isolation
on the PoE port. With wide operating temperature, -10~70°C, and rugged IP-30
housing design, IDS-5042-I+ could operate in the harsh industrial environment.
Therefore, IDS-5042-I+ is the best solution to the high demand of secure serial
to Ethernet critical data communication.
| Physical Ports |
|
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX |
2 |
| PoE Feature |
PoE Present at ETH2
Power Device (IEEE 802.3af) : IEEE 802.3af compliant input interface
Over load and short circuit protection
Isolation Voltage : 1000 VDC min.
Isolation Resistance : 108 ohms min |
| Serial Ports |
|
| Connector |
5-pin terminal block x 4 |
| Operation Mode |
RS-422 / 4(2)-Wire RS-485. Which can be configured by DS-Tool |
| Serial Baud Rate |
110 bps to 460.8 Kbps |
| Data Bits |
5, 6, 7, 8 |
| Parity |
odd, even, none, mark, space |
| Stop Bits |
1, 1.5, 2 |
| RS-232 |
Tx+,Tx-, Rx+, Rx-,GND |
| RS-422 |
Tx+,Tx-, Rx+, Rx-,GND |
| RS-485 (4-wire) |
Data+, Data-,GND |
| RS-485 (2-wire) |
2KV |
| Flow Control |
XON/XOFF |
| Network Features |
|
| Network Protocols |
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c,
HTTPS, SMTP, SSL, PPPoE, DDNS |
| LED Indicators |
|
| Power Indicator |
PWR 1(2) / Ready :
Red On : Power is on and booting up.
Red Blinking : Indicates an IP conflict, or DHCP or BOOTP server did not
respond properly.
Green On : Power is on and functioning Normally.
Green Blinking : Located by Administrator. |
| 10/100Base-T(X) RJ45 Port Indicator |
Green for port Link/Act at 100Mbps. Amber for port
Link/Act at 10Mbps. |
| Serial TX / RX LEDs |
Red : Serial port is receiving data
Green : Serial port is transmitting data |
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 1A at 24VDC |
| Power |
|
| Redundant Input Power |
Triple DC Inputs,48VDC from PoE and Dual DC inputs.
12~48VDC on 6-pin terminal block |
| Power Consumption (Typ.) |
5.5 watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
52(W) x 106.1(D) x 144.3(H) mm
(2.05x4.18x5.68 inch.) |
| Weight (g) |
667g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-10 to 70°C (14 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensin |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS),
EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8,
EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Warranty |
5 years |
|
|
