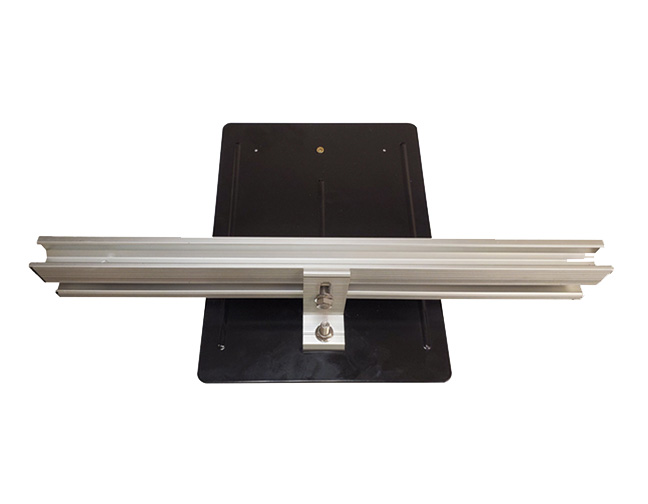

TPSM-ROOF-MOUNT
|
Aluminum Anchor Plate x 4 |
300 x 226 x 2.2mm (11.8 x 8.9 x 0.087”) Painted (Black) |
Extruded Aluminum Rail x 4 |
1080 x 59 x 30mm (42.5 x 2.3 x 1.18”) Clear Anodize |
Standoff From Roof |
51mm (2”) Max, 12.7mm (0.5”) Min |
Solar Panels Supported |
2 Max (~720W Total), 35-50MM (1.38-2”) Thickness |
Tycon Solar Panel Compatibility |
TPS-24-360W (24V 360W 72 Cell) |
Achievable Tilt |
~1.5 degrees (in addition to roof tilt) |
Max wind speed |
100mph |
Shipping Dimensions |
1100 x 240 x 100mm (44 x 9.5 x 4”) |
Shipping Weight |
5.4kg (12lbs) |
