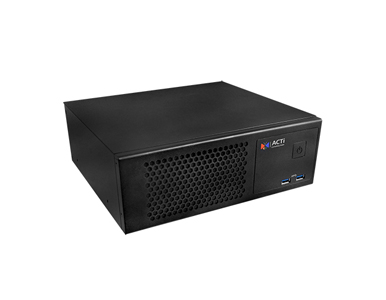

MAS-100 - 9-Channel Visitor Counting and Layout Efficiency Mini Standalone Market Application
by ACTi

Device

MAS-100

Product Type

Standalone Market Application Suite

Maximum Number of Cameras

9

Description

9-Channel Visitor Counting and Layout Efficiency Mini Standalone Market Application Suite

Hardware

CPU

Intel Core i5-6500TE

RAM

8GB

Market Application Suite Features

Total Occupancy

Total number of people in the store in any given moment based on traffic data from multiple entrances and exits.

Traffic Performance

Number of people going in and out from specific entrance or exit for defined period of time. The results from multiple entrances can be compared to define the best time and location for future in-store campaigns.

Total Traffic Performance vs Weather

Total traffic performance can be mapped with weather information for correlation analysis to predict future trends of traffic based on weather forecast.

Layout Efficiency

Heat map based on walking paths of visitors that allows defining ideal layout of shelves and aisles as well as suitable products for specific areas. Selectable heat maps per hour or per day.

Network

Network Protocol & Service

IPv4/v6, TCP, IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP, SNTP, ICMP, ARP, SMTP, FTP, UPnP, LDAP (client)

Ethernet Port

Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector

System

Server Operating System

Embedded Windows 7

USB

6 port(s), USB 3.0

Language

Multi-Language

Interface

Serial Port

2 x RS-232

External Storage Interface

eSATA, iSCSI

General

Power Source

AC 100-240V

Dimensions

(W x H x D): 255mm x 88mm x 215mm (10" x 3.46" x 8.46")

Bundled Accessories

Power cord

System Drive

SSD, 120GB

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

10% - 85% RH

Approvals

CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for built-in power adapter)

Color

Black

Interface

SATA
