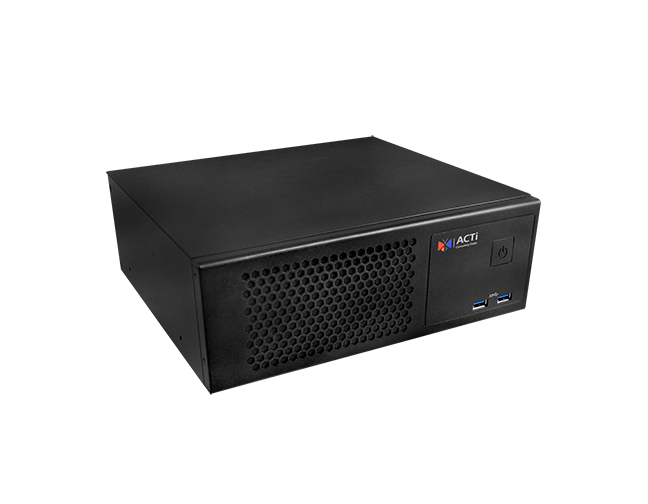

MAR-100 - 9-Channel Visitor Counting and Layout Efficiency Mini Standalone Market Application Recorder by ACTi
|
|
|
- 9-Channel Visitor Counting
- Layout Efficiency Mini Standalone Market Application Recorder with Recording Throughput 128 Mbps
- 9-channel display layout, e-Map, HDMI, DVI and Display port for 1080p Display
- Remote Access, 4-channel free license included
- 2-Bay (1 System Disk included), Audio, AC 100-240V
|
|
|
MAR-100 is
a 9-Channel Visitor Counting and Layout Efficiency Mini Standalone Market Application Recorder with Recording Throughput 128 Mbps, 9-channel display layout, e-Map, HDMI, DVI and Display port for 1080p Display, Remote Access, 4-channel free license included, 2-Bay (1 System Disk included), Audio, AC 100-240V
Device |
MAR-100 |
Product Type |
Standalone Market Application Suite |
Maximum Resolution |
Up to 12MP |
Maximum Number of Video devices |
9 |
Maximum Number of Clients |
Local: 1, Remote: 3 |
Description |
9-Channel Visitor Counting and Layout Efficiency Mini Standalone Market Application Recorder |
Hardware |
|
CPU |
Intel Core i7-6700TE |
RAM |
8GB |
License |
|
Free License |
9 (for security surveillance)
4 (for business intelligence) |
Market Application Suite Features |
|
Total Occupancy |
Total number of people in the store in any given moment based on traffic data from multiple entrances and exits. |
Traffic Performance |
Number of people going in and out from specific entrance or exit for defined period of time. The results from multiple entrances can be compared to define the best time and location for future in-store campaigns. |
Total Traffic Performance vs Weather |
Total traffic performance can be mapped with weather information for correlation analysis to predict future trends of traffic based on weather forecast. |
Layout Efficiency |
Heat map based on walking paths of visitors that allows defining ideal layout of shelves and aisles as well as suitable products for specific areas. Selectable heat maps per hour or per day. |
Market Application Suite with NVR Lite |
|
Live View |
Local display: 1, 4 |
Live View |
|
Display Layout Mode |
1,4,5,6,8,9 |
Digital Zoom |
Yes |
Instant playback |
Instant Playback in live view window |
Map |
|
e-Map |
Yes |
Layout |
Area maps with camera icons, small live view windows, hyperlinked |
Setup |
e-Map image upload, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning |
PTZ Mode |
Mouse PTZ mode to control e-Map video streams |
PTZ |
|
PTZ Control |
PTZ Control, Speed Control |
Joystick |
USB based joystick supported |
Video |
|
Compression |
H.265, H.264, MPEG-4, MJPEG |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of concurrent channels or algorithms. Please test the actual performance before using in a project. |
Audio |
|
Audio Compression |
PCM, G.711, G.726 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP Client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi |
Ethernet Port |
Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
Recording |
|
Scheduled Recording |
Yes |
Event Recording |
Yes |
Manual Recording |
Yes |
Event Speed-up Recording |
Yes |
Dual Stream Management |
Yes |
Maximum Recording Throughput |
300 Mbps |
Search & Playback |
|
Playback Control |
Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame, pause, stop |
Synchronized Playback |
9 channels (Local), 9 channels (Remote) |
Video Export |
AVI, RAW, EXE |
Event |
|
Event Trigger |
Disk full, Disk not found, Disk is available, Video motion detection, Passive IR sensor, External device through digital input, Video loss, Video Recovery, Network loss and recovery, |
Event Response |
Pop-up window with live video, Switch to hotspot window, Play alert sound, Activate external device through digital output, Upload video or snapshot to FTP server, Execute system command to activate other programs |
System |
|
Permission control |
Unlimited number of users and user groups, Active Directory, Customizable permissions for user groups, Playback password protected, Password validity period |
Server Operating System |
Embedded Windows 7 |
Mobile Client Program |
Mobile device application (ACTi Mobile Client) supports PTZ Control, Mobile device application (ACTi Mobile Client) supports Event/time based search and playback, Supported device(s) iPhone, Supported device(s) iPad, Supported device(s) iTouch, Supported device(s) Android device |
USB |
6 port(s), USB 3.0 |
Language |
Multi-Language |
Integration |
|
Unified Solution |
Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
GPS Position |
Manual setting |
Interface |
|
Serial Port |
2 x RS-232 |
External Storage Interface |
eSATA, iSCSI |
General |
|
Power Source |
AC 100-240V |
Weight |
3200g (7.05lb) |
Dimensions |
(W x H x D): 255mm x 88mm x 215mm (10" x 3.46" x 8.46") |
Bundled Accessories |
Power cord |
HDD Bay |
SATA, Max. 1 3.5" Disk(s) (without storage disks) |
System Drive |
SSD, 120GB |
Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for built-in power adapter) |
Color |
Black |
Interface |
SATA |
|
|
