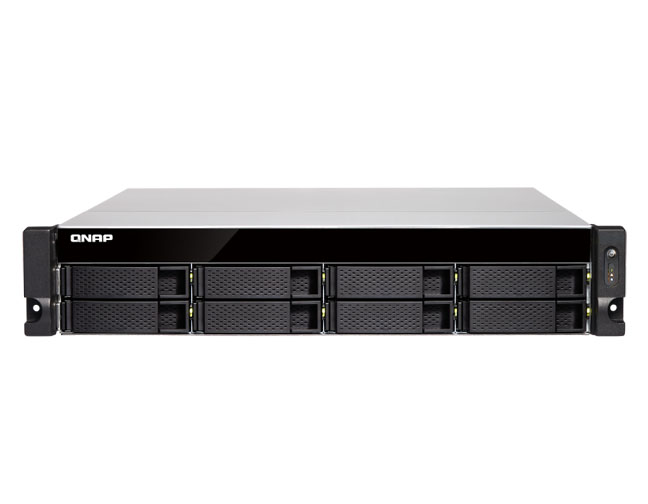

TS-883XU-RP-E2124-8G-US - TS-883XU-RP-E2124-8G-US - 2U 8-bay NAS, Intel Xeon E-2124 CPU, DDR4 2666 4GB x2, 1GbE x4, 10GbE SFP+ x by QNAP
|
|
|
- DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.
- Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing, intensive data transfer, and VMware virtualization applications.
- PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
- Supports VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016 virtualization with reliability and cost-efficiency.
- Software-defined SSD extra over-provisioning combats write amplification and optimizes SSD random write speeds for IOPS-demanding applications.
- Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.
Mfg SKU # : | TS-883XU-RP-E2124-8G-US |
|
|
|
The Intel® Xeon® E based TS-883XU-RP-E2124-8G-US enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features 10GbE SmartNIC controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-883XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.
TS-883XU-RP-E2124-8G-US
CPU |
Intel® Xeon® E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz) |
CPU Architecture |
64-bit x86 |
Floating Point Unit |
|
Encryption Engine |
(AES-NI) |
System Memory |
8 GB UDIMM DDR4 ECC (2 x 4GB) |
Maximum Memory |
64 GB (4 x 16 GB) |
Memory Slot |
4 x Long-DIMM DDR4 |
Flash Memory |
5GB (Dual boot OS protection) |
Drive Bay |
8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
Hot-swappable |
|
SSD Cache Acceleration Support |
|
Gigabit Ethernet Port (RJ45) |
4 |
10 Gigabit Ethernet Port |
2 x 10GbE SFP+ SmartNIC port |
Jumbo Frame |
|
PCIe Slot |
4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU) Slot 4 is preinstalled with a 10GbE network adapter |
USB 3.2 Gen 2 (10Gbps) Port |
2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
Form Factor |
2U Rackmount |
LED Indicators |
HDD 1-8, Status, LAN, storage expansion port status |
Buttons |
Power, Reset |
Dimensions (HxWxD) |
88.3 × 482 × 562 mm |
Weight (Net) |
10.99 kg |
Operating temperature |
0 - 40 °C (32°F - 104°F) |
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit |
300W(x2), 100-240V |
Power Consumption: Operating Mode, Typical |
89.99 W Tested with drives fully populated. |
Fan |
System fan: 2 x 60mm, 12VDC |
Sound Level |
42 db(A) |
System Warning |
Buzzer |
Max. Number of Concurrent Connections (CIFS) |
700 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
