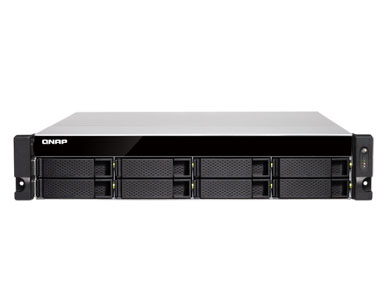

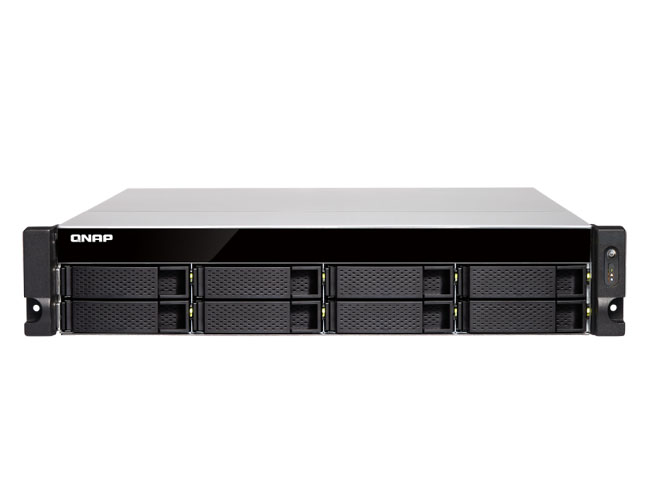

TS-877XU-1200-4G-US - 2U 8-Bay Rackmount NAS/iSCSI IP-SAN, AMD Ryzen_ 3 1200 4-core 3.1 GHz processor, 4GB DDR4 RAM (max 64GB),
by QNAP
|
|
|
|
- Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
- PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless network cards.
- Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
- Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
- Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
- RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance
| Mfg SKU # : | TS-877XU-1200-4G-US |
|
|
|
Powered by AMD’s powerful Ryzen™ processor, the TS-877XU-1200-4G-US is capable of boosting virtual machine performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU. The TS-877XU also features a redundant power supply to ensure maximum system uptime.
TS-877XU-1200-4G-US
|
| CPU |
AMD Ryzen™ 3 1200 quad-core 3.1 GHz processor, Turbo Core 3.4 GHz |
| CPU Architecture |
64-bit x86 |
| Floating Point Unit |
|
| Encryption Engine |
(AES-NI) |
| System Memory |
4 GB UDIMM DDR4 (1 x 4GB) |
| Maximum Memory |
64 GB (4 x 16 GB) |
| Memory Slot |
4 x Long-DIMM DDR4 |
| Flash Memory |
5GB (Dual boot OS protection) |
| Drive Bay |
8 x 3.5-inch SATA 6Gb/s |
| Drive Compatibility |
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| Gigabit Ethernet Port (RJ45) |
2 |
| 10 Gigabit Ethernet Port |
2 x 10GbE SFP+ SmartNIC port |
| Jumbo Frame |
|
| PCIe Slot |
4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use. |
| USB 3.2 Gen 1 port |
4 |
| USB 3.2 Gen 2 (10Gbps) Port |
1 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
1 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| Form Factor |
2U Rackmount |
| LED Indicators |
HDD 1-8, Status, LAN, storage expansion port status |
| Buttons |
Power, Reset |
| Dimensions (HxWxD) |
88.3 × 482 × 562 mm |
| Weight (Net) |
11.98 kg |
| Weight (Gross) |
14.24 kg |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
350W, 100-240V |
| Power Consumption: Operating Mode, Typical |
73.1 W Tested with drives fully populated. |
| Fan |
System fan: 2 x 70mm, 12VDC |
| Sound Level |
35.2 db(A) |
| System Warning |
Buzzer |
| Max. Number of Concurrent Connections (CIFS) |
700 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
