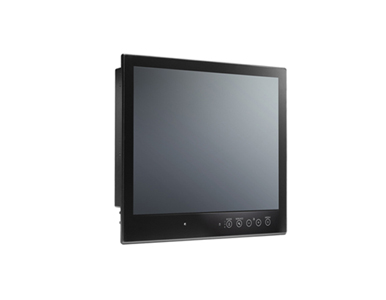

MD-219Z-HB - 19-inch sunlight readable display, 5:4 aspect ratio (1280x1024), glove-friendly multi-touch, LED backlight, DVI-D/V by MOXA
|
|
|
- 19-inch display, 5:4 aspect ratio
- Sunlight readable 1000-nit LED backlight
- Color calibrated for ECDIS compliant
- Full range dimming, 0 to 100%
- SavvyTouch™ display controls
- Built-in RS-232/422/485 interfaces
- Dual power supplies (AC & DC)
- IP54-rated front panel (IP66 available by request)
- Optical bonding available on request
|
|
|
The MD-219 series of marine displays comes with full range dimming, wide viewing angles and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, reducing deployment costs and overall time-to-market.
The innovative and user-friendly Savvy touch display controls offer several unique features not found on any other marine display console: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates on hardware status, and a quickswitch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).
The MD-219 series displays are compliant with IEC 60945, DNV, and IACS E10, verifying their resilience and durability in maritime conditions. Their IP54 (IP66-rated model available by request) rated enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.
ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.
• Display |
Panel Size |
19” viewable image size |
Panel Type |
MVA |
Aspect Ratio |
5:4 |
Pixels |
1280 x 1024 (SXGA) |
Response Time |
20 ms (gray to gray) |
Contrast Ratio |
2000:1 |
Light Intensity |
Standard model: 300 nits
High brightness model: 1000 nits |
Viewing Angles |
178?/178? |
Active Display Area |
376.32 (H) x 301.06 (V) mm |
Max. No. of Colors |
16.7M / 8-bit color |
Display Interface |
VGA input x 1, DVI-D input x 1 |
Resolution |
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024 |
• Serial Interface |
Serial Standards |
1 RS-232 port (DB9), 1 RS-422/485 port (terminal block) |
Optical Isolation Protection |
4 kV |
• Serial Signals |
RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
RS-485-2w |
Data+, Data-, GND |
• Front Panel |
LEDs |
MENU, brightness, INFO, ECDIS, Day/Dusk/Night |
Smart OSD |
Yes |
• Physical Characteristics |
Housing |
Aluminum sheet metal |
Weight |
7.8 kg |
Dimensions |
429 x 387 x 75 mm (16.89 x 15.24 x 2.95 in) |
Mounting |
VESA, panel, and desktop |
• Environmental Limits |
Operating Temperature |
-15 to 55°C (5 to 131°F) |
Storage Temperature |
-20 to 60°C (-4 to 140°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
IP Rating |
• Front: IP54 (IP66 available by request)
• Rear: IP22 |
Anti-Vibration |
0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis |
• Power Requirements |
Input Voltage |
• DC: 24 VDC (with tolerance from 18 to 30 VDC, 2-pin terminal block)
• AC: 100 to 240 VAC |
Power Consumption |
40 W (max.) |
• Standards and Certifications |
Safety |
UL 60950-1, CCC |
Hazardous Environments |
UL Class 1 Division 2 |
EMC |
EN 55032/24 |
EMI |
CISPR 32, FCC Part 15B Class A |
EMS |
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 1 kV
IEC 61000-4-8 |
Marine Standards |
IEC-60945 4th, IEC-61174 |
Marine Type Approval |
DNV 2.4 and IACS E10, ABS |
Green Product |
RoHS, cRoHS, WEEE |
|
|
|
|
