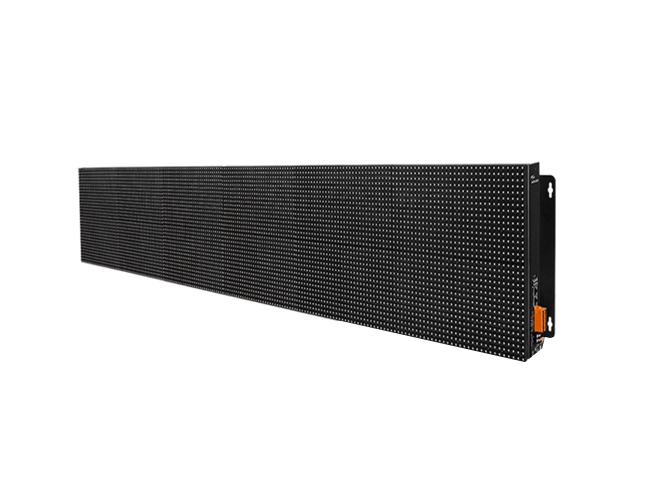

iKAN-224, the iKAN series is a family of industrial LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. It is highly suitable for presenting formatted messages in indoor areas using either Unicode characters, which can be used to display multiple languages, or ASCII characters.
The iKAN-116 provides a single line of eight Unicode characters or 16 ASCII characters, while the iKAN-124 provides 12 Unicode characters or 24 ASCII characters. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.
The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone.
Display
Size
Line: 2
ASCII Characters: 24
Unicode Characters: 12
Real Time Clock
Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets
16 x 16 Unicode or 8 x 16 ASCII
Color
Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool
40 Coils, 64 Float values, and 64 Integer values
Message Pool
128 common messages with user-defi ned priority levels, Up to 20 Unicode characters or 50 ASCII characters each
COM Port
Port
2 x RS-485
Baudrate (bps)
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format
N81, E81, O81
Protocol
Modbus RTU Master/ Slave
Ethernet
Port
2 x RJ-45, 10/100 Base-TX
Protocol
Modbus TCP Slave, Max. 8/8 connections
Configuration
Web-based User Interface
Power
Input Range
100 ~ 240 VAC
Consumption
0.5 A @ AC 120 V
Mechanical
Casing
Aluminum
Dimensions (W x H x D)
1986 mm x 320 mm x 49 mm
Weight
26.46 lbs
Environment
Operating Temperature
0 ~ +60°C
Storage Temperature
-10 ~ +75°C
Humidity
10 ~ 90% RH, Non-condensing
