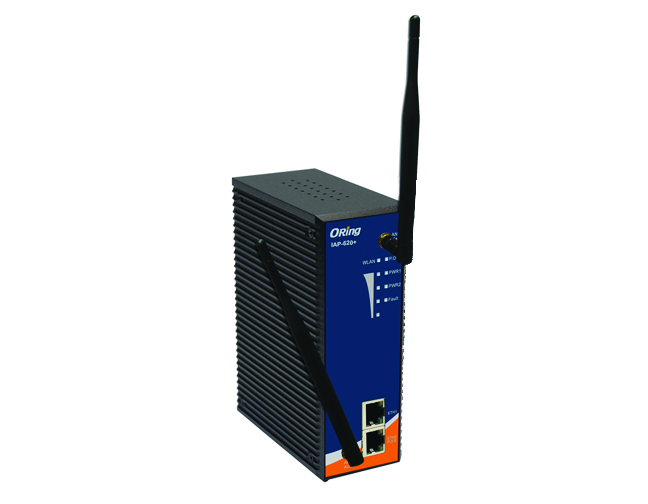

| Physical Ports |
|
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX |
2 |
|
P.O.E. PD port |
Present at ETH2
Fully compliant with IEEE 802.3af Power
Device specifi cation
Over load & short circuit protection
Isolation Voltage : 1000 VDC min.
Isolation Resistance :10^8 ohms min |
| USB Host port |
1x USB 2.0 Host port |
| WLAN
interface |
|
| WAN Connection Type |
Static/Dynamic IP / PPPoE / Modem (56K/GPRSG/3G/3.5G
Modem) dial up |
| Antenna and connector |
2dBi ( b/g mode) / 3dBi ( a mode ) antenna on reverse
SMA connector |
| Radio Frequency Type |
DSSS |
| Modulation |
IEEE802.11a/n : OFDM with BPSK, QPSK, 16QAM, 64QAM
IEEE802.11b : CCK, DQPSK, DBPSK
IEEE802.11g/n : OFDM with BPSK, QPSK, 16QAM, 64QAM |
| Frequency Band |
America / FCC:
2.412~2.462 GHz (11 channels )
5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels )
Europe CE / ETSI:
2.412~2.472 GHz ( 13 channels )
5.180~5.240 GHz ( 4 channels )
Japan(JP):
2.412~2.484 GHz ( 13 channels )
5.180~5.240 GHz ( 4 channels )
Canada(CA):
2.412~2.462 GHz ( 11 channels )
5.180~5.825 GHz ( 21 channels ) |
| Transmission Rate |
IEEE802.11b : 1/ 2/ 5.5/ 11 Mbps
IEEE802.11a/g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
IEEE802.11n : up to 300Mbps |
| Transmit Power |
802.11a: 13dBm ±1.5dBm
802.11b: 16dBm ±1.5dBm
802.11g: 14dBm ±1.5dBm
802.11n(2.4G@20MHz): 13dBm ±1.5dBm
802.11n(2.4G@40MHz): 12dBm ±1.5dBm
802.11n(5G@20MHz): 12dBm ±1.5dBm
802.11n(5G@40MHz): 12dBm ±1.5dBm |
| Receiver Sensitivity |
802.11a: -68dBm ±2dBm@54Mbps
802.11b: -82dBm ±2dBm@11Mbps
802.11g: -68dBm ±2dBm@54Mbps
802.11n(2.4G@20MHz,MCS15): -64dBm ±2dBm
802.11n(2.4G@40MHz,MCS15): -60dBm ±2dBm
802.11n(5G@20MHz,MCS15): -64dBm ±2dBm
802.11n(5G@40MHz,MCS15): -60dBm ±2dBm |
| Encryption Security |
WEP : (64-bit ,128-bit key supported)
WPA :
WPA2 : 802.11i(WEP and AES encryption)
WPAPSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption |
| Wireless Security |
SSID broadcast disable |
| Modem Support |
|
|
| List |
USB modems and ISDN adapters which support the
Communication Device Class Abstract Control Model interface
List of tested device :
Hummingbird huc56s (Conexant)
Huawei E220/E230
Simense HSDPA-180C
Prolific 2303 + serial modem
Quanta MUQ101
Sony Ericsson MD400/MD400g
Sierra C885 |
| LED Indicators |
|
|
| Power Indicator |
PWR 1(2)(P.O.E.) / Ready :
Red On : Power is on and booting up.
Green On : Power is on and functioning Normally. |
| 10/100TX RJ45 Port Indicator |
Green for port Link/Act at 100Mbps. Amber for port
Link/Act at 10Mbps. |
| WLAN LEDs |
WLAN Link /ACT : Green : Link, Orange : Poor signal
WLAN Strength : 1<25%, 2<50%, 3<75%, 4<100% |
| Fault |
Red : Ethernet link down or power down |
| LED Indicators |
|
|
| Relay |
Relay output to carry capacity of 1A at 24VDC |
| Power |
|
|
| Redundant Input Power |
Dual DC inputs. 12-48VDC on 6-pin terminal block |
| Power Consumption (Typ.) |
6 Watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present on terminal block |
|
Physical Characteristic |
|
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
52(W) x 106.1(D) x 144.3(H) mm (2.05x4.18x5.68 inch.) |
| Weight (g) |
803 g |
807 g |
| Environmental |
|
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-10 to 70°C (14 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
|
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT),
EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
3 years |
