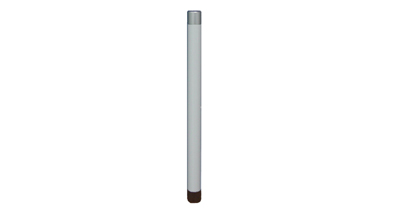

ANT-WDB-ANM-0609 - 2.4/5GHz, Dual-band omni-directional antenna, 6/9 dBi, N-type (male) by MOXA
|
|
|
• High-gain antenna to enhance performance
• Waterproof N-type connector
• Lightweight
½“, sans-serif; font-size:12px; color:rgb(0, 0, 0); font-style:normal; font-weight:normal; ">• Compact form factor
• Housing provides IP65 protection
• -40 to 80˚C operating temperature range
Mfg SKU # : | ANT-WDB-ANM-0609 |
|
|
|
2.4/5GHz, Dual-band omni-directional antenna, 6/9 dBi, N-type (male)
• Antenna Characteristics |
Frequency |
2.4 to 2.5 or 5.1 to 5.9 GHz |
Antenna Type |
Omni-directional, Dipole |
Typical Antenna Gain |
6/9 dBi |
Connector |
N-type (male) |
Impedance |
50±5 ohms |
Polarization |
Linear |
HPBW/horizontal |
360° |
HPBW/vertical |
10/8° |
V.S.W.R. |
1:1.5 max. |
Power Handling |
10 W max. |
• Physical Characteristics |
Weight |
238 g |
Dimensions |
Diameter: 23 mm Length: 632 mm |
IP Rating |
IP65 |
Radome Color |
White |
Radome Material |
Glass fiber |
• Environmental Limits |
Operating Temperature |
-40 to 80°C (-40 to 176°F) |
Storage Temperature |
-40 to 80°C (-40 to 176°F) |
Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
