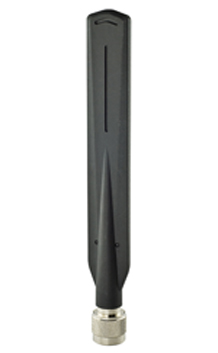

ANT-WDB-ANM-0502 - 2.4/5GHz, Dual-band omni-directional antenna, 5/2 dBi, N-type(male)
by MOXA
|
|
|
|
• High-gain antenna to enhance performance
• Waterproof N-type connector
• Lightweight
½“, sans-serif; font-size:12px; color:rgb(0, 0, 0); font-style:normal; font-weight:normal; ">• Housing provides IP67 protection
• -40 to 80?C operating temperature range
|
|
|
2.4/5GHz, Dual-band omni-directional antenna, 5/2 dBi, N-type(male)
| • Antenna Characteristics |
| Frequency |
2.4 to 2.5 or 5.1 to 5.9 GHz |
| Antenna Type |
Omni-directional, Dipole |
| Typical Antenna Gain |
5/2 dBi |
| Connector |
N-type (male) |
| Impedance |
50±5 ohms |
| Polarization |
Linear |
| HPBW/horizontal |
360° |
| HPBW/vertical |
65° |
| V.S.W.R. |
1:2.0 max. |
| Power Handling |
2 W max. |
| • Physical Characteristics |
| Weight |
72 g |
| Dimensions |
Diameter: 23 mm Length: 220 mm |
| IP Rating |
IP67 |
| Radome Color |
Black |
| Radome Material |
NY66 |
| • Environmental Limits |
| Operating Temperature |
-40 to 80°C (-40 to 176°F) |
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity |
5 to 100% |
|
|
