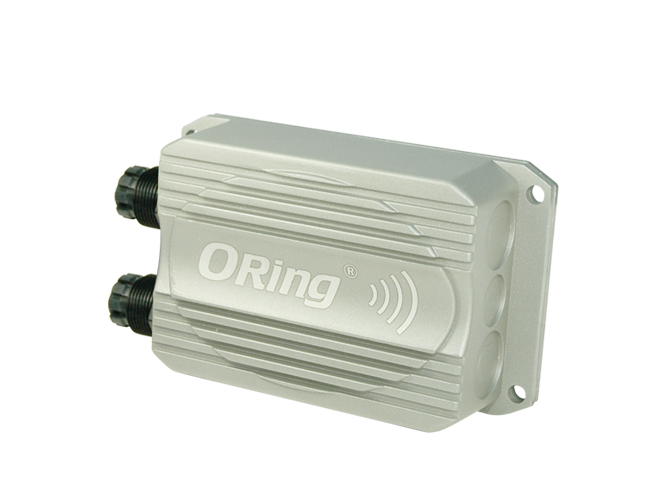

IAP-W420+ - IP 67 Waterproof 2x 10/100TX (one port PD) to 1x802.11b/g/n Access Point with Internal Antenna by ORing Industrial Networking
|
|
|
- High Speed Air Connectivity: WLAN interface support up to 300Mbps link speed
- Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
- High throughput > 80Mbps
- High power output 800mw
- Far Distance Air Connectivity up to 7 KM (IAP-W420+)
- Support X-Roaming < 100 ms
- Support AP/Client/Repeater/AP-Client Mode
- Wireless connecting status monitoring
- HTTPs protocol supported for secured management
- Event Warning by Syslog, Email, SNMP Trap
- Rigid IP-67 housing design
- Pole-mount enabled
|
|
|
IAP-W420+ is a reliable IP-67 outdoor IEEE 802.11 b/g/n WLAN Access Point with 1 PoE P.D. Ethernet port. It can be configured to operate in AP/Client/Repeater/AP-Client mode. It is specifically designed for the toughest industrial environments. In combination with its IP-67 design and the superb management functionality, IAP-W420+ / W422+ provides a waterproof, dust-tight connection. In addition, IAP-W420+ provides high power output of 500mw and high throughput up to 80Mbps to satisfy far distance connection. IAP-W422+ provides two N-type connectors, which can install any N-type antennas to extend communication distance. You are able to configure IAP-W420+ / W422+ by WEB interface via LAN port or WLAN interface. In addition, IAP-W420+ / W422+ also provides P.D. feature which is fully compliant with IEEE802.3af PoE P.D. specification to save the layout cost of power line. The IAP-W420+ / W422+ can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. Therefore, IAP-W420+ / W422+ is one of the best outdoor communication solutions for wireless applications
Physical Ports |
|
|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX |
2 |
WLAN interface |
|
|
Operating Mode |
AP/Client/Repeater/AP-Client |
Antenna Connector |
Built-in 10dBi panel antenna |
|
Radio Frequency Type |
OFDM |
Modulation |
IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11g/n: OFDM with BPSK, QPSK, 16QAM, 64QAM |
Frequency Band |
America / FCC : 2.412~2.462 GHz (11 channels )
Europe CE / ETSI: 2.412~2.472 GHz ( 13 channels ) |
Transmission Rate |
IEEE802.11b: 11, 5.5, 2, 1 Mbps;
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11n: up to 300Mbps |
Transmit Power |
800mw Max. |
Receiver Sensitivity |
-96dBi |
Encryption Security |
WEP: (64-bit ,128-bit key supported)
WPA/WPA2 :802.11i(WEP and AES encryption)
WPAPSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption |
Wireless Security |
SSID broadcast disable |
Protocol Support |
|
|
Protocol |
ARP,BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D) |
LED Indicators |
|
|
Power indicator |
1 x LED,
Green On: Power(PoE) is on and functioning Normally. |
10/100Base-T(X) RJ45 port indicator |
2 x LED,
Green On: Port Link / Act, Blinking: data transmission |
WLAN LED |
3 x LED,
Green for WLAN Strength: 1<30%, 2<60%, 3<90% |
Power |
|
|
Input power |
48VDC from P.o.E |
Power consumption (Typ.) |
9 Watts |
Physical Characteristic |
|
|
Enclosure |
IP-67 |
Dimension (W x D x H) |
162(W)x 101.5(D)x 58(H) mm
(6.38x 4.0x 2.28 inch.) |
|
Weight (g) |
680 g |
Environmental |
|
|
Storage Temperature |
-30 to 85°C (-22 to 185°F) |
Operating Temperature |
-20 to 70°C (-4 to 158°F) |
Operating Humidity |
100% Non-condensing |
Regulatory approvals |
|
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock |
IEC60068-2-27 |
Free Fall |
IEC60068-2-32 |
Vibration |
IEC60068-2-6 |
Safety |
EN60950-1 |
|
|
