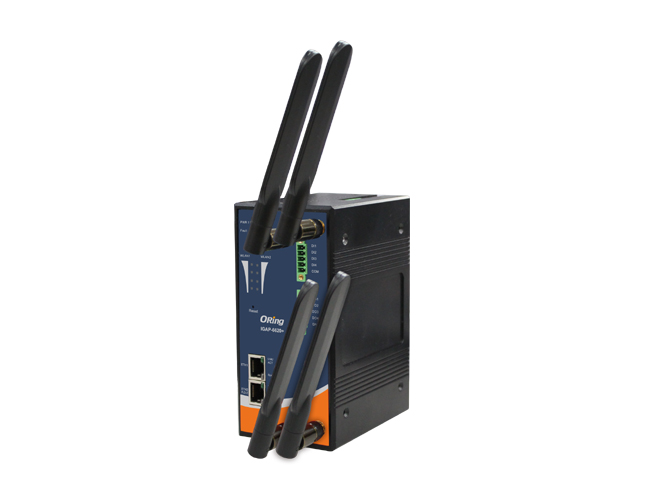

IGAP-6620+ - Rugged 2x 10/100/1000TX (RJ-45 LAN with one PoE client) + 2x 802.11a/b/g/n Access Point
by ORing Industrial Networking

IGAP-6620+ is a reliable WLAN Access Point with 2 Ethernet Gigabit ports and dual RF in IEEE 802.11 a/b/g/n wireless modules. It can be configured to operate in AP/Bridge/Repeater/AP-Client mode. You are able to configure IGAP-6620+ by WEB interface via LAN port or WLAN interface. IGAP-6620+ provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. In addition, IGAP-6620+ also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, IGAP-6620 is one of the best communication solutions for wireless applications on the industrial network..

Physical Ports
100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX	2
5-Pin Terminal Block	4(DI and DO)
Antenna Connector	4
P.O.E. PD port	Present at ETH2 Fully compliant with IEEE 802.3af  Power Device specifi cation Over load & short circuit protection Isolation Voltage : 1000 VDC min. Isolation Resistance : 108 ohms min
WLAN interface
Operating Mode	AP/Bridge/Repeater/AP-Client
Antenna and connector	Reverse SMA Female
Radio Frequency Type	DSSS
Modulation	IEEE802.11b: CCK, DQPSK, DBPSK IEEE802.11a/g: OFDM with BPSK, QPSK, 16-QAM, 64-QAM IEEE802.11n: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band	America/FCC: 2.412~2.462 GHz (11 channels) 5.180~5.240 GHz & 5.745~5.825 GHz (9 channels) Europe CE/ETSI: 2.412~2.472 Ghz (13 channels) 5.180~5.240 GHz  (4 channels)
Transmission Rate	IEEE802.11b: 1/ 2/ 5.5/ 11 Mbps IEEE802.11a/g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps IEEE802.11n:up to 300Mbps
Transmit Power	802.11a: 12dBm ± 1.5dBm@54Mbps 802.11b: 17dBm ± 1.5dBm@11Mbps 802.11g: 16dBm ± 1.5dBm@54Mbps 802.11gn HT20: 15dBm ± 1.5dBm @MCS7 802.11gn HT40: 14dBm ± 1.5dBm @MCS7 802.11an HT20: 12dBm ± 1.5dBm @MCS7 802.11an HT40: 11dBm ± 1.5dBm @MCS7
Receiver Sensitivity	802.11a : -76dBm ± 2dBm@54Mbps 802.11b : -85dBm ± 2dBm@11Mbps 802.11g : -76dBm ± 2dBm@54Mbps 802.11gn HT20:-75dBm ± 2dBm@MCS7 802.11gn HT40:-72dBm ± 2dBm@MCS7 802.11an HT20:-74dBm ± 2dBm@MCS7 802.11an HT40:-71dBm ± 2dBm@MCS7
Encryption Security	WEP: (64-bit ,128-bit key) WPA/WPA2 PSK :TKIP and AES encryption (802.11i) 802.1X/RADIUS Authentication supported
Wireless Security	SSID broadcast disable
Protocol Support
Protocol	ARP, BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP, RSTP
LED Indicators
Power Indicator	3 x LEDs, PWR1(2)(PoE) / Ready: Red On : Power is on and booting up Green On : Power is on and functioning Normal
100/1000TX RJ45 Port Indicator	2 x LEDs, LNK/ACT:Green for port Act. Speed: Green for port Link at 1000Mbps Amber for port Link at 100Mbps. Off for port Link at 10Mbps
WLAN LEDs	2 x Green Solid On: RF on, Blink: data transmitting 2 x Green for WLAN work on 2.4GHz 2 x Green for WLAN work on 5GHz
Fault	1 x LED, Red for Ethernet link down or power down indicator
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 12-48VDC on 6-pin terminal block
Power Consumption (Typ.)	11
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristic
Enclosure	IP-30
Dimension (W x D x H)	74.3(W) x 109.2(D) x 153.6(H) mm (2.93 x 4.3 x 6.05 inch.)
Weight (g)	1250
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-25 to 70°C (-13 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
