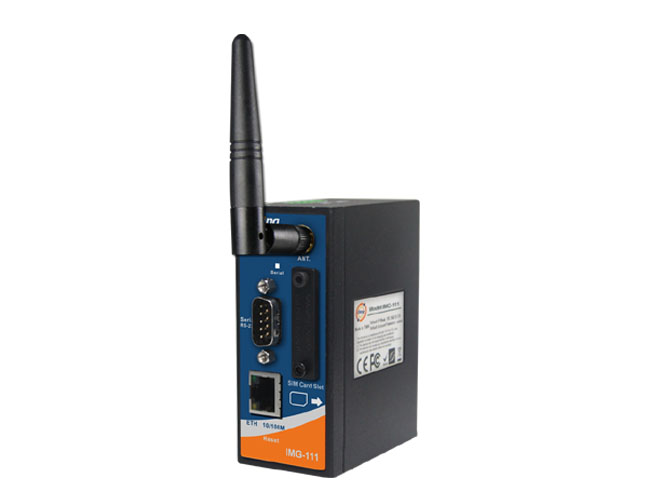

Physical Ports |
|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX |
1 |
Sim Card Slot |
1 |
Cellular Interface |
|
Cellular Standard |
GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA |
Band Option |
Dual-band : HSUPA 1900/2100 MHz Quad-band : GSM/GPRS/EDGE
850/900/1800/1900 MHz
WCDMA/HSDPA 850/900/1900/2100 MHz |
Antenna Connector |
Reverse SMA |
Antenna |
GSM/DCS/UMT 3G antenna x1 |
Serial Ports |
|
Connector |
DB9 Male x 1 |
Operation Mode |
RS-232 |
Serial Baud Rate |
110 bps to 115.2 Kbps |
Data Bits |
5, 6, 7, 8 |
Parity |
odd, even, none, mark, space |
Stop Bits |
1, 1.5, 2 |
Serial signals |
RS-232 :TxD, RxD, GND |
LED Indicators |
|
Power Indicator |
Green On: Power is on and functioning Normally. |
Status indicator |
Green : System status indicator |
Fault indicator |
Amber on : WAN connection link down |
WAN |
Green on : 3.5G dial up
Green blinking : 3.5G disconnect |
Serial TX/RX LED |
Red : Receiving data
Green : Transmitting data |
10/100TX RJ45 port indicator |
Green for port Link/Act. |
Fault Contact |
|
Relay |
Relay output to carry capacity of 1A at 24VDC |
Power |
|
Input Power |
12-48VDC power input on terminal block |
Power Consumption (Typ.) |
4.5W |
Physical Characteristics |
|
Enclosure |
IP-30 |
Dimensions (W x D x H) |
41(W) x 70(D) x 95(H) mm (1.61 x 2.76 x 3.74 inch.) |
Weight (g) |
360g |
Environmental |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Operating Temperature |
-10 to 60°C (-14 to 140°F) |
Operating Humidity |
5% to 95% Non-condensing |
Regulatory Approvals |
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5
(Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Warranty |
3 years |
