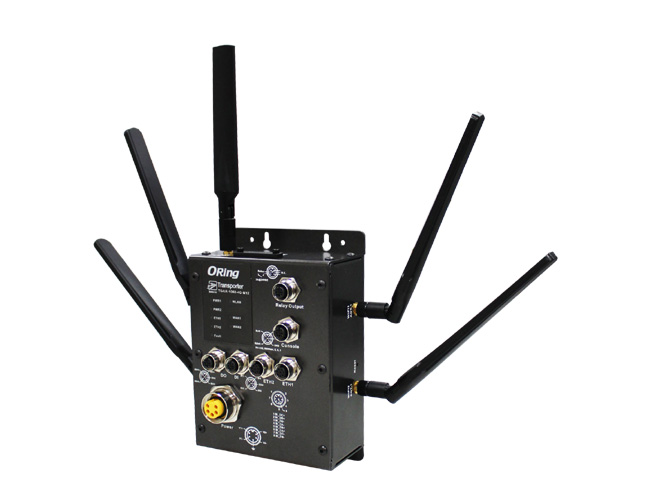

Physical Ports |
|
|
100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX |
2 |
2 (Present at ETH2 Fully compliant with IEEE 802.3af PoE P.D.) |
DIDO port in M12 (A-Coding) |
2(DI x 4 and DO x 4) :
Dry Contact:
On: short to GND, Off: open
Wet Contact (DI to COM/GND):
On: 0 to 3VDC, Off: 10 to 30VDC |
RS-232 Console port in M12 (5-pin A-coding) |
115200, 8 ,N ,1 |
SIM Card Slot |
1 |
Relay port in M12 (5-pin A-coding) |
1A@24VDC |
GPS |
|
|
Antenna and connector |
Active GPS Antenna, SMA female connector |
Frequency |
1575.42MHz |
Cellular Interface |
|
|
Antenna and connector |
1 x SMA Female |
Cellualr Standard |
GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA/ LTE |
Band Option |
America(US)
LTE:
700(B17)/1700(B4)/2100(B1)/ MHz
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:
800/850/1900/2100 MHz
GSM/GPRS/EDGE:
850/900/1800/1900 MHz
Europe(EU)
LTE:
800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7) MHz
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:
900/2100 MHz
GSM/GPRS/EDGE:
900/1800/1900 MHz |
WLAN interface |
|
|
Operating Mode |
AP/Bridge/Repeater/AP-Client |
Antenna and connector |
4 x Reverse SMA Female |
Radio Frequency Type |
DSSS |
Modulation |
IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11a/g: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
IEEE802.11n: OFDM with BPSK, QPSK, 16-QAM, 64-QAM |
Frequency Band |
America / FCC:
2.412~2.462 GHz (11 channels )
5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels )
Europe CE / ETSI:
2.412~2.472 GHz ( 13 channels )
5.180~5.240 GHz ( 4 channels ) |
Transmission Rate |
IEEE802.11b: 1/ 2/ 5.5/ 11 Mbps
IEEE802.11a/g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
IEEE802.11n:up to 300Mbps |
Transmit Power |
802.11a: 12dBm ± 1.5dBm@54Mbps
802.11b: 17dBm ± 1.5dBm@11Mbps
802.11g: 16dBm ± 1.5dBm@54Mbps
802.11gn HT20: 15dBm ± 1.5dBm @MCS7
802.11gn HT40: 14dBm ± 1.5dBm @MCS7
802.11an HT20: 12dBm ± 1.5dBm @MCS7
802.11an HT40: 11dBm ± 1.5dBm @MCS7 |
Receiver Sensitivity |
802.11a : -76dBm ± 2dBm@54Mbps
802.11b : -85dBm ± 2dBm@11Mbps
802.11g : -76dBm ± 2dBm@54Mbps
802.11gn HT20:-75dBm ± 2dBm@MCS7
802.11gn HT40:-72dBm ± 2dBm@MCS7
802.11an HT20:-74dBm ± 2dBm@MCS7
802.11an HT40:-71dBm ± 2dBm@MCS7 |
Encryption Security |
WEP: (64-bit ,128-bit key)
WPA/WPA2 PSK :TKIP and AES encryption (802.11i)
802.1X/RADIUS Authentication supported |
Wireless Security |
SSID broadcast disable and enable |
Protocol Support |
|
Protocol |
ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE |
LED Indicators |
|
|
Power Indicator |
2 x LEDs, Green for Power on |
10/100/1000TX RJ45 Port Indicator |
2 x LEDs, Green for port Link/Act |
WLAN LED |
2 x LED, Green for WLAN Link/Act |
WAN LED |
1 x LEDs, Green for WLAN Link/Act |
Fault |
1 x LED, Red for Ethernet link down or power down indicator |
Fault contact |
|
|
Relay |
Relay output to carry capacity of 1A at 24VDC |
Power |
|
|
Redundant Input Power |
Dual DC inputs. 12-48VDC on 6-pin terminal block |
Power Consumption (Typ.) |
15.2Watts |
Overload Current Protection |
Present |
Reverse Polarity Protection |
Present |
Physical Characteristic |
|
|
Enclosure |
IP-40 |
Dimension (W x D x H) |
125.6(W) x 65(D) x 196.1(H) mm (4.94 x 2.55 x 7.72 inch.) |
Weight (g) |
1035g |
Environmental |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Operating Temperature |
-25 to 70°C (-13 to 158°F) |
Operating Humidity |
5% to 95% Non-condensing |
Regulatory approvals |
|
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11 |
Rail Traffic |
EN50155 |
Shock |
IEC60068-2-27 |
Free Fall |
IEC60068-2-31 |
Vibration |
IEC60068-2-6 |
Safety |
EN60950-1 |
