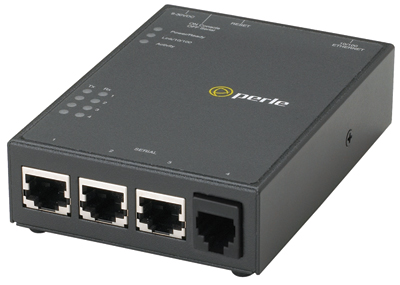

04030824 - *** Discontinued *** Last 1 Available - IOLAN SDS3 M Secure Device Server ( Terminal Server )- 3 x RJ45 connector wit by PERLE

04030824 - *** Discontinued *** Last 1 Available - IOLAN SDS3 M Secure Device Server ( Terminal Server )- 3 x RJ45 connector wit
by PERLE
Write a review Write a review
  • 3 software selectable RS232/422/485 serial port interfaces
  • Integrated V.92 modem - RJ11 jack
  • 10/100 Ethernet
  • Advanced security features for data encryption, user authentication and event management
Mfg SKU # : 04030824
Our Price : $750.00
Stock : 1
Quantity :

For secure serial to Ethernet connectivity applications requiring dial-up modem access, the IOLAN SDSM Device Serveris the most advanced compact product available on the market today. Delivering high performance in a compact size, anIOLAN SDSM, with integrated V.92 modem, offers extensive security, flexibility and next generation IPv6 technology. It is ideal for applications that require remote device/console management, data capture or monitoring over an IP network or dial-up modem connection.

Why IOLAN SDSM Device Servers are the preferred choice:

Modem Device Server Diagram
  • High performanc 66Mhz, 87 MIPS processor for the best performance on the market
  • On-board RJ11 modem connection prvides a secure and reliable connection to the POTS network
  • TrueSerial® packet technology delivers the most authentic serial connections across Ethernet for serial protocol integrity
  • Indicators for network and serial interfaces for easy troubleshooting
  • Plug & Play installation utility eliminates configuration hassles for all IOLAN's on your IP network
  • TruePort – Perle’s com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
  • FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
  • Power over serial cable eliminates costs of a separate power installation
  • Next Generation IP support ( IPv6 ) for investment protection and network compatibility
  • Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting
  • Java-free browser access to remote serial console ports via Telnet and SSH
  • Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
  IOLAN SDS3 M
Processor MPC852T, 66 Mhz, 87 MIPS
Memory
RAM MB 32
Flash MB 8
Interface Ports
Number of Serial Ports 3
Serial Port Interface Software selectable EIA-232/422/485 on RJ45
Modem Port RJ11 connector, V.92/V.90 standard
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during
power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits 5,6,7,8, 9-bit protocol support
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection ( ESD )
Local Console Port RS232 on Serial Port
Network 10-base T / 100-base TX Ethernet RJ45

Software selectable Ethernet speed 10/100 Auto

Software selectable Half/Full/Auto duplex
Ethernet Isolation 1.5Kv Magnetic Isolation
Power
Power Supply 120 V AC (USA), 230V AC (International) Wall Power Adaptor included
Power Supply Options Power via External power 9-30v DC,
4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket,
Power IN over serial cable
Nominal Input Voltage 12v DC
Input Voltage Range 9-30v DC
Power External Device via Serial Port +5v DC regulated, 1W max
Typical Power Consumption @
12v DC ( Watts )		 2.1
Indicators
LEDs Power/Ready

Network Link

Network Link activity

Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output
( BTU/HR )		 7.2
MTBF ( Hours )* 195,678
Operating Temperature 0C to 55C, 32F to 131F
Storage Temperature -40C to 66C, -40F to 150F
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP40
Mounting Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight 0.7 KG (1.6 lbs)
Dimensions 11.3 x 8.1 x 2.8 (cm)
4.4 x 3.2 x 1.1 (in)
Packaging
Shipping Dimensions 25.5 x 16.5 x 6.5 (cm), 10 x 6.5 x 2.6 (in)
Shipping weight 0.75 Kg including Power Adaptor
Regulatory Approvals
Emissions FCC Part 15, Subpart B, Class A
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
ICES-003, Issue 4, February 2004 (Canada)
EN55022:1998 + A1:2000 + A2:2003 Class A
EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
Immunity EN55024:1998 + A1:2001 + A2:2003
EN61000-4-2: Electrostatic Discharge
EN61000-4-3: RF Electromagnetic Field Modulated
EN61000-4-4: Fast Transients
EN61000-4-5: Surge
EN61000-4-6: RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and
EN 60950-1 : 2006 + A11 : 2009
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component
Other Reach, RoHS and WEEE Compliant
CCATS - G052929
ECCN - 5A992A
HTSUS Number: 8471.80.1000
Perle Limited Lifetime Warranty
Serial Connector Pinout

IOLAN DTE

RJ45Socket

RJ45 Socket
IOLAN RJ45 Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422
1 right arrow Power In Power In Power In Power In
2 right arrow DCD - - -
3 left arrow RTS TxD+ DATA+ DATA+ TxD+
4 right arrow DSR - - -
5 left arrow TXD TxD- DATA- TxD-
6 right arrow RXD RxD+ - RxD+
7 line GND GND GND GND
8 right arrow CTS RxD- - RxD-
9 left arrow DTR - - -
10 left arrow Power Out Power Out Power Out Power Out
