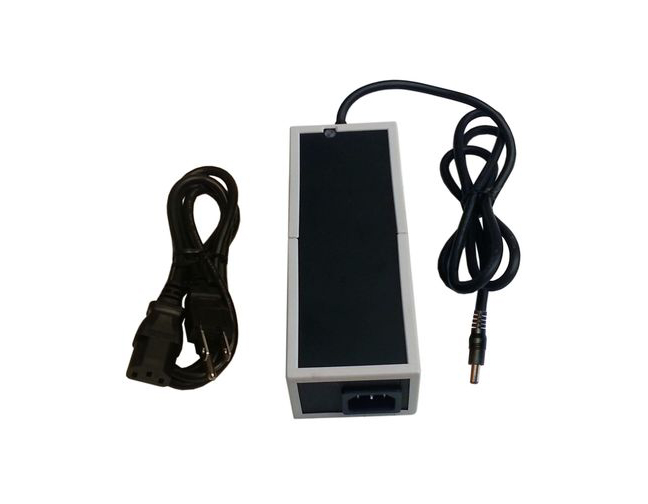

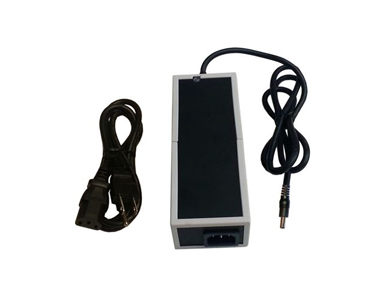

PSHP-56-180 - *Discontinued* Last 1 available - 56V 180W Power Supply with 5.5x2.1 DC Plug and NA AC Cord
by Tycon Systems
|
|
|
|
- High Power and rugged design
- High Efficiency Design > 8 5 %
- Short Circuit, Over - Voltage,Over - current Protection
- Detachable AC power cord
|
|
|
The PSHP-56-180 high efficiency, auto ranging switching power supplies have an impressive 180W capacity. They are designed for long life operation with an MTBF exceeding 40,000 hours. The AC/DC power supplies are available in a North American plug or European Plug models.
Supplies are certified by CE, FCC & comply with RoHS requirements. They meet California energy commission appliance efficiency regulations.
56V 180 Watt High Power Autoranging power supply.
| Input Operating Range |
90 - 264VAC 47 - 63Hz |
| Input In - rush Current |
60A Max |
| Input Current |
1.5 A Max |
| Output Voltage |
56 VDC +/ - 2% |
| Continuous Load Current |
3.2A |
| Ripple / Noise |
1% / 5% |
| Efficiency |
85 % M inimum |
| Dielectric Strength |
1800 V rms / 50Hz, 1 sec, 10 mA Max |
| Protection |
Short Circuit, Overshoot (10%), Over - Voltage (+4V), Over - Current (125%) |
| MTBF |
40,000 Hours |
| Safety Standards |
UL 60950 - 1 , CUL 22.2 No.60950 - 1 - 03 , TUV EN60950 - 1 |
| EMI Standards |
FCC PA RT 15 CLASS B , EN55022 CLASS B , CISPR 22 CLASS B |
| Operating Temp |
- 2 0°C to 5 0°C ( - 4 °F to 122 °F) |
| Operating Humidity |
5 % to 9 0% non - condensing |
| Storage Temp |
- 4 0°C to 8 5 °C ( - 4 0 °F to 1 85 °F) |
| DC Plug / Cable Length |
5.5/2.1mm DC Plug / 1.2m (48”) |
| Case Size |
175 x 65 x 43 mm ( 6.9 x 2 .6 x 1. 7 ”) |
| Weight |
907 g (32 oz) |
|
|
