UPS-STL48-50 - UPSPro 200W 2400VA, 24/48VDC Output, 7 Gigabit PoE Ports, 1 Aux Port, 120/240VAC Input, Lg Steel Encl, 48V 52Ah B by Tycon Systems
|
|
|
- Up to 200W Maximum Continuous Output
- Manageable Charge Controller with Remote Monitoring
- Integral 7 Port Gigabit PoE Switch
- Isolates Equipment from Power Line Surges
- High Performance Sealed Lead Acid Batteries
- 200Ah (2400VA) Battery Capacity
- Operating Temperature -30°C to +60°C

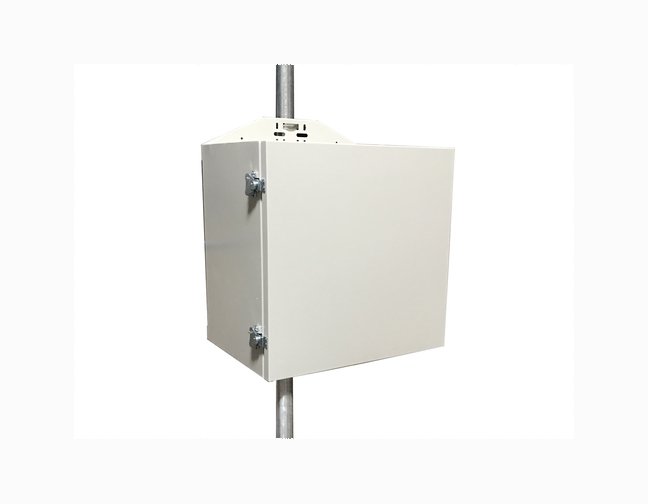

- Weatherproof, Vented, Locking Outdoor Enclosure
- Solar Ready, Just add 48V Panels to Convert to Solar.
|
|
|
The UPS-STL48-100 UPSPro™ STL outdoor UPS systems are designed to provide up to 200 continuous watts of backup power. The controller provides load control to make sure the batteries don’t over-discharge. This greatly extends the life of the batteries. The load output is also regulated to be sure that the voltage doesn’t exceed the maximum voltage allowed by the load. The system is powered from 115VAC or 230VAC power. In case of power failure, the transition to battery power is seamless and automatic. Recovery is automatic. Systems are available without batteries to save on international shipping costs. UPS-STL48-100 feature a state-of-the-art manageable, temp compensated, MPPT battery charge controller with integrated monitoring/control and 7 port gigabit PoE switch. The controller is powered by a 65V 1200W AC to DC power supply. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. A 19” 1U rackmount feature is integral to the enclosure as are multiple DIN Rail mounts. The enclosure has security latches that can be secured using a customer supplied padlock. There are three cable gland ports for CAT5 cable, solar and other cabling. There is a thermostatically controlled fan that automatically turns on when the temperature exceeds 45°C. The included bracket kit allows for the enclosure to be pole mounted or wall mounted. The systems are rated to operate over a wide temperature range of -30°C to +60°C with 48V 50Ah (2400VA) Battery. Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5years Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
|
UPS STL48 50 |
Backup Time @ 50W Load |
24Hrs |
Backup Time @ 100W Load |
12Hrs |
Backup Time @ 150W Load |
8Hrs |
Backup Time @ 200W Load |
6Hrs |
PoE Output (Passive PoE) |
7 Gigabit PoE Ports, 24V or 48V Selectable |
Maximum Total Load Output |
200W |
Secondary Voltage Output |
24V or 48V @ 2.25A Max; Selectable via Web Interface |
Storage Capacity |
200Ah (2400VA) |
Battery Type |
Non-Spillable Valve Regulated Sealed Lead Acid AGM |
Battery Life (Typical) |
5+ Years |
Battery Voltage |
48VDC |
Maximum Charge Current |
18A |
Over-Discharge Protection |
45.8V to 47.8 – settable in web interface |
Other Protections |
Surge Protection on Inputs and Outputs |
VAC Input +/-10% |
115VAC / 230 VAC Selectable |
VAC Input Current |
12A @ 115VAC ; 6A @ 230VAC Max |
Self-Consumption |
3.5W Typical |
Enclosure Type |
Powder Coated Steel, Pole or Wall Mount |
Enclosure External Size |
24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm) |
Enclosure Internal Size |
23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm) |
Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
System Weight (no batteries) |
75lb (34kg) |
Battery Weight |
152lb (69kg) |
|
|
