Battery Voltage (DC) |
24V |
Input Voltage (AC) |
120/240VAC, 50/60Hz, 2.5A Max |
Available 12V Capacities (Amp Hr) |
18Ah(2 batteries), 36Ah(4 batteries) |
Avail Storage Capacity (Watt Hr) |
216Wh, 432Wh |
Max Output Power |
120W |
Suggested Maximum Load |
100W |
Maximum Instantaneous Load |
20A 500msec |
Battery Type |
Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
Battery Life |
5 Years |
Controller Type |
20A PWM Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 160W |
Controller Display Status |
Battery Voltage, Charging Current, Load Current, Temperature |
Overcharge Protection |
14.4V / 28.8V |
Over-discharge protection |
11V / 22V |
Over-discharge recovery voltage |
12.3V / 24.6V |
Controller Self Consumption |
<0.3W |

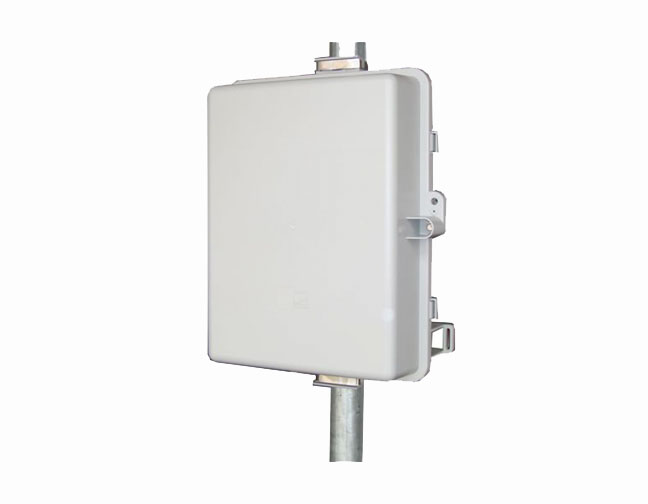

Enclosure Type |
Polycarbonate |
Enclosure External Size |
17.5 x 12.5 x 6” (445 x 318 x 152mm) |
Enclosure Internal Size |
14 x 10 x 5” (356 x 254 x 127mm) |
Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
System Weight (Without batteries) |
6lb (1.8kg) |
Battery Weight (each) |
5.5lb (2.5kg) |
Certifications |
Individual components used have CE Certifications. Batteries have CE and UL. |
