PM-3133-100-MTCP - Modbus TCP, 4 Loops, Three Phase Power Meter (60 A)
by ICP DAS
|
|
|
|
3-Phase Smart Power Meter. Voltage Measurements Up to 500V. Modbus TCP Protocol. Supports Ethernet Interface. 2-Power Relay Output (Form A). -10 °C ~ 70 °C (14 °F ~ 158°F) operating temperatures. Provides Amperage, Voltage and Wattage Information.
|
|
|

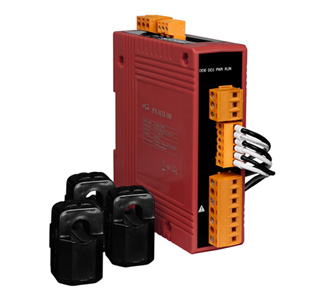

PM-3133-100-MTCP is a three-phase smart power meter communicable over Modbus TCP for power monitoring. With its high accuracy (<0.5%, PF=1), the PM-3133 series products can be applied both on low voltage primary side and/or medium/high voltage secondary side and enable the users to obtain in real time the reliable and accurate energy consumption readings from the monitored equipments. These compact size and cost effective Power Meters are equipped with wired clip-on CT (supports input current up to 200A) and standard Modbus TCP communication protocol for easy integration. It works with input voltages ranging from 10V ~ 500V, supporting a wide range of applications.
- True RMS energy and power parameters measurement.
- Energy Analysis for 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
- Current Measurements Up to 200A with Different CT Ratio
- Voltage Measurements Up to 500V
- Clip-on CT for Easy Installation
- W Accuracy Greater than 0.5% (PF=1)
- Supports Ethernet Interface
- Supports Modbus TCP protocol
- Supports 2-Power Relay Output (Form A)
| Model |
PM-3133-100-MTCP |
| AC Power Measurement |
| Wiring |
1P2W-1CT, 1P3W-2CT, 3P3W-2CT, 3P3W-3CT and 3P4W-3CT |
| Measurement Voltage |
10 ~ 500 V (CAT III) |
| Measurement Current |
CT Φ10 mm (60 A); CTΦ16 mm (100 A); CTΦ24 mm (200 A) |
| Measurement Frequency |
50-60 Hz |
| W Accuracy |
Greater than 0.5% (PF=1) |
| Starting Current |
>0.03A (60A ) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW),
Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),
Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF) |
| Data Update Rate |
1 Second |
| Communication |
| Dimension |
Protocol |
- |
| Baud rate |
- |
| Data forat |
- |
| Isolation |
- |
| Bias Resistor |
- |
| Ethernet |
Protocol |
Modbus TCP |
| PoE |
Modbus TCP |
| Alarm Output |
| Power Relay |
Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250
VAC (47 ~ 63Hz), 5 A @ 30 VDC |
| Aux Power |
| Input Range |
+12 ~ 48 VDC or PoE |
| Power Consumption |
4 W |
| Dimensions (W x L x H) |
127 mm x 105 mm x 33 mm |
| Environment |
| Operating Temperature |
-10 ~ +70 °C (14 °F ~ 158 °F) |
| Storage Temperature |
-25 ~ +80 °C (-13° F ~ 176° F ) |
|
|
