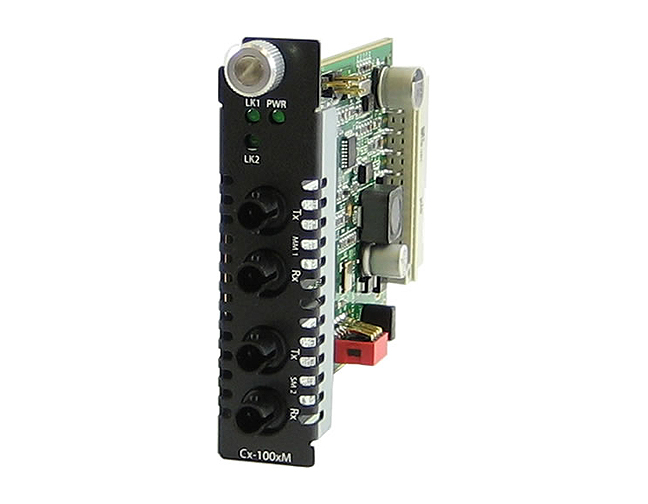

| Indicators |
| Power / TST |
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode. |
| Fiber link 1 / Receive activity (LK1) |
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received. |
| Fiber link 2 on / Receive activity (LK2) |
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received. |
| Switches: On-Board |
| Auto-Negotiation |
Auto (default up) - Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through.
Off - Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through. |
| Link Mode |
Smart Link Pass-Through: - (default up) - In this mode, the link state on one connection is directly reflected through the media converter to the other connection. If link is lost on one of the connections, then the other link will be brought down by the media converter.
Standard: - In this mode the links on both fiber ports can be brought up and down independently of each other. A loss of link on either link can take place without affecting the other connection. |
| Fiber Fault Alert |
Enabled - (default up) - If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports.
Disabled: The media converter will not monitor for fiber fault or generate them. |
| Remote Loopback #1 |
The media converter can perform a loopback on the link #1 fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface |
| Remote Loopback #2 |
The media converter can perform a loopback on the link #2 fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface |
| Fiber Connectors |
| 1000Base-X |
Multimode dual ST to single mode dual ST fiber connector model
Available in SC, ST and LC connector models |
| Packet Transmission Characteristics |
| Bit Error Rate (BER) |
<10 -12 |
| Environmental Specifications |
| Operating Temperature |
0° C to 50° C (32° F to 122° F) |
| Storage Temperature |
minimum range of -25° C to 70° C (-13° F to 158° F) |
| Operating Humidity |
5% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/HR ) |
8.53 |
| Maximum Power Consumption ( Watts ) |
2.5 |
| MTBF (Hours)* |
421,344 |
| Mechanical - Hot Swapping Card |
| Edge Connecter |
32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power |
| Card insertion and removal |
Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver. |
| Product Weight |
| Weight |
0.15 kg, 0.33 lbs |
| Packaging |
| Shipping Weight |
0.33 kg, .73 lbs |
| Shipping Dimensons |
203 x 38 x 152 mm, 8 x 1.5 x 6 inches |
| Regulatory Approvals |
| Emissions |
FCC Part 15 Class A, EN55022 Class A |
| CISPR 22 Class A |
| EN61000-3-2 |
| Immunity |
EN55024 |
| Electrical Safety |
UL 60950-1 |
| EN60950 |
| CE |
| Laser Safety |
EN 60825-1:2007 |
| Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
| Environmental |
Reach, RoHS and WEEE Compliant |
| Other |
ECCN: 5A991A |
| HTSUS Number: 8517.62.0050 |
| Perle Limited Lifetime Warranty |
