| Power |
| Input Supply Voltage |
6 - 30 vDC, unregulated ( 12 vDC Nominal ) |
| Current |
175 mA |
| Power Consumption |
2.1 watts |
| Power Connector |
5.5mm x 9.5mm x 2.1mm barrel socket |
| Power Adapter |
| Universal AC/DC adapter |
100-240v AC, regulated DC adapter included |
| Indicators |
| Power / TST |
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode. |
| Fiber link on / Receive activity (LKF) |
This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. |
| Copper link on / Receive activity (LKC) |
This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is on and flashes with a 50% duty cycle when data is received. |
| Fiber Duplex (FDF) |
This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operatinal in full duplex mode. The LED is off when in half duplex. |
| Copper Duplex (FDC) |
This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is operatinal in full duplex mode. The LED is off when in half duplex. |
| 10/100/1000 Speed |
This multi-color LED is operational only when power is applied. The LED is green when the speed of the copper ethernet port is running at 1000 Mbps. The LED is orange when the speed of the copper Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps. |
| Switches - accessible through a side opening in the chassis |
| Auto-Negotiation (802.3u) |
Enabled (Default) - The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities.
Disabled - The media converter sets the port according to the position of the speed and duplex switches. |
| Link Mode |
Link Mode provides a transparency to the state of the copper link allowing for simplified trouble shooting from the devices connected to the media converter.
Normal (Default – Up)
With Fiber Auto Negotiation enabled when the copper link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).
With Fiber Auto Negotiation disabled the state of the copper link has no effect on the 1000Base-X link.
Smart Link Pass Through (Down)
With Fiber Auto Negotiation enabled the behavior is as follows. When the copper link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault). When Remote Fault (Link Fault) is received on the 1000Base-X interface the copper transmitter will be turned off. When the copper receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper transmitter will be turned off.
With Fiber Auto-Negotiation disabled the behavior is as follows. When the copper receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper transmitter will be turned off. |
| Fiber Fault Alert |
The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled
Enabled (Default - Up)
When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature.
Disabled (Down) |
| Remote Loopback |
The media converter can perform a loopback on the 1000Base-X fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface. |
Auto-MDIX
(Internal Strap) |
If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate.
Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.
Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting. |
| Speed Copper |
100 (Default)
10 |
| Duplex Copper |
Full (Default)
Half |
| Duplex Fiber |
Full (Default)
Half |
| Connectors |
| 10/100/1000Base-T |
RJ45 connector
2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100.
4 pair CAT5 UTP cable for Gigabit.

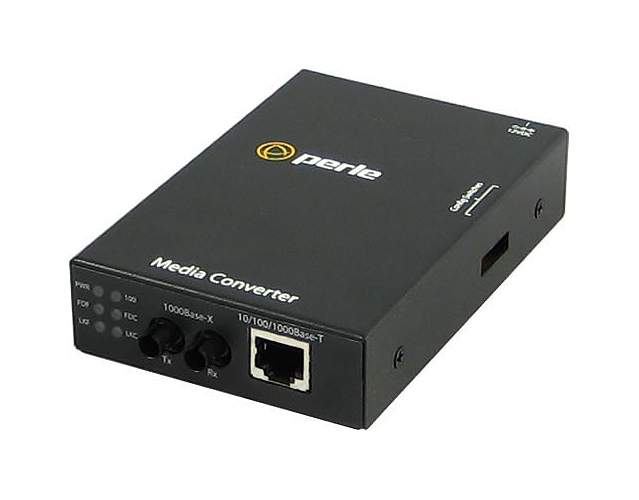

Multimode dual ST Media Converter |
| Magnetic Isolation |
1.5kv |
| Filtering |
| Filtering |
1024 MAC Addresses |
| Frame Specifications |
| Buffer |
1000 Kbits frame buffer memory |
| Size |
Maximum frame size of 10,240 bytes -- Gigabit
Maximum frame size of 2048 bytes -- Fast Ethernet |
| Environmental Specifications |
| Operating Temperature |
0 C to 50 C (32 F to 122 F) |
| Storage Temperature |
minimum range of -25 C to 70 C (-13 F to 158 F) |
| Operating Humidity |
5% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/HR ) |
7.2 |
| MTBF (Hours)* |
Without power adaptor: 598,000
With power adaptor: 334,000 |
| Mounting |
| Din Rail Kit |
Optional |
| Rack Mount Kit |
Optional |
| Product Weight and Dimensions |
| Weight |
0.3 kg, 0.66 lbs |
| Dimentions |
120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches |
| Packaging |
| Shipping Weight |
0.55 kg, 1.2 lbs |
| Shipping Dimentions |
170 x 280 x 70 mm, 6.7 x 10.2 x 2.8 inches |
| Regulatory Approvals |
| Emissions |
FCC Part 15 Class A, EN55022 Class A |
| CISPR 22 Class A |
| EN61000-3-2 |
| Immunity |
EN55024 |
| Electrical Safety |
UL 60950-1 |
| EN60950 |
| CE |
| Laser Safety |
EN 60825-1:2007 |
| Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
| Environmental |
Reach, RoHS and WEEE Compliant |
| Other |
ECCN: 5A991A |
| HTSUS Number: 8517.62.0050 |
| Perle Limited Lifetime Warranty |
