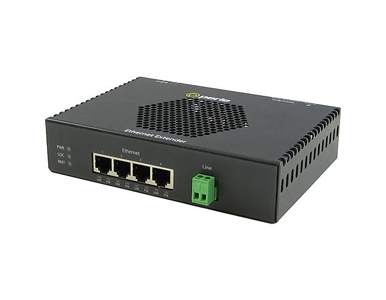

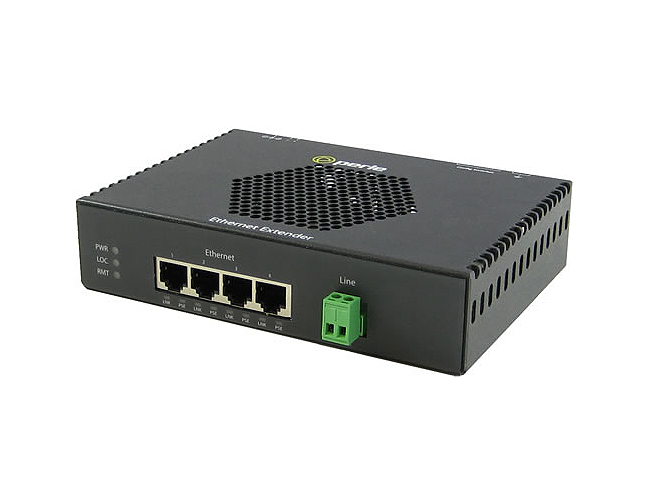

Remote ( Power over Ethernet ) |
Power |
eXP-4S110E |
Unit Powered by |
Local power adapter or VDSL |
Provides Power to: |
Ethernet |
Power adapter connector |
Barrel or terminal block |
Input Voltage Range from adapter |
46V to 57 |
Input Voltage Range from VDSL (parasitic) |
24 to 57 |
Universal AC Adapter |
48vDC, 60 watts is included when purchased an individual basis. One 48vDC 60 watts adapter is provided in each kit. |
Power Connectors |
5.5mm x 9.5mm x 2.1mm barrel socket and 2 pin terminal Block |
|
Remote ( Power over Ethernet ) |
Ethernet |
eXP-4S110E |
10/100Base TX Port(s) |
4 port RJ45 Shielded |
Auto-MDIX |
Auto-MDIX enables proper operation with either straight-through or crossover cabling |
Distance |
Distance up to 100 meters ( 328 feet ) as per IEEE 802.3 |
Maximum Frame Size |
1522 |
Type of PoE device |
PSE ( PoE ) IEEE 802.3af |
PoE PSE Maximum Power (Watts) |
Refer to the Power Reach Installation Planning Guide |
PoE PSE RJ45 Cable Pinout |
Alternative A ( default ) on all ports
Pins 3,6 Neg, Pins 1,2 Pos
Alternative B: selectable on port #1
Pins 7,8 Neg, Pins 4,5 Pos
Legacy Cisco Pre-Standard: selectable on port #1
Pins 7,8 Pos, Pins 4,5 Neg |
|
Remote ( Power over Ethernet ) |
VDSL – Interlink |
eXP-4S110E |
Connector |
Choice of RJ45, BNC or terminal block models for VDSL link connector
- RJ45 – RING pin 4, TIP pin 5 (TIA 568 A/B)
- BNC – Coaxial 75 ohm cable with BNC connector
- Terminal Block – 2 position screw connectors for use with twisted pair telephone, alarm or serial cabling
|
Copper Cabling |
Ethernet Extenders must be connected in pairs using unconditioned wire between 19 ( 0.9 mm ) and 26 AWG ( 0.44 mm ). Circuits that run through signal equalization equipment are not permitted. |
Power Injection over the Interlink ( VDSL ) – 2-wire |
N/A |
Short Circuit Protection |
N/A |
Reverse Polarity Protection |
The voltage from the VDSL link requires proper polarity in order to provide power to the remote extender. Reverse polarity protection however will ensure that there is no damage to the extender |
Power Multiplier Selection |
When used with 4-pair cable such as CAT5 on the VDSL Interlink port, an optional internal strap selection on the Ethernet Extender will provide VDSL transmission data on 1 pair and power across the 3 other pairs enabling even greater distances for power transmission to be achieved |
VDSL Line Rate/Reach |
Actual distance and rates experienced will depend on condition and gauge of wire used. This Rate/Reach table applies to 24 AWG ( 0.5 MM ) twisted pair wiring on RJ45 (RJ) and terminal block (TB) models.
High Speed Asymmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
101 |
92 |
1000 |
305 |
101 |
63 |
1500 |
457 |
90 |
38 |
2000 |
610 |
62 |
24 |
2500 |
762 |
55 |
10 |
3000 |
914 |
42 |
5 |
3500 |
1000 |
35 |
3 |
High Speed Symmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
101 |
101 |
1000 |
305 |
85 |
101 |
1500 |
457 |
62 |
47 |
2000 |
610 |
60 |
29 |
2500 |
762 |
44 |
14 |
3000 |
914 |
30 |
7 |
3500 |
1000 |
29 |
4 |
Long Reach Symmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
53 |
44 |
1000 |
305 |
53 |
43 |
2500 |
762 |
39 |
18 |
4000 |
1219 |
25 |
4 |
5500 |
1676 |
17 |
1.9 |
7000 |
2134 |
8 |
2.3 |
7500 |
2286 |
7 |
2.2 |
8000 |
2438 |
5 |
2.2 |
Long Reach Asymmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
78 |
16 |
1000 |
305 |
78 |
16 |
2500 |
762 |
55 |
10 |
4000 |
1219 |
31 |
0.8 |
5500 |
1676 |
20 |
0.6 |
7000 |
2134 |
11 |
0.6 |
7500 |
2286 |
10 |
0.6 |
8000 |
2438 |
8 |
0.6 |
This table applies when the power multiplier option is selected |
Power Budget |
The amount of available power at the PoE PD is dependent on the scenario planned.
Refer to the Power Reach Installation Planning Guide |
|
Remote ( Power over Ethernet ) |
Indicators |
eXP-4S110E |
Power / TST |
This green LED is turned on when power is applied to the Ethernet Extender. Otherwise it is off. The LED will blink when in Loopback test mode. |
CO - Local |
Ethernet Extender is operating in CO VDSL mode |
CPE - remote |
Ethernet Extender is operating in CPE VDSL mode |
ILNK |
Indicates Link Status and activity on the Interlink (VDSL) port |
ETH |
Indicates link status and activity on Ethernet port(s). |
PSE Status |
This LED will signify the status of the PSE function. Using multi-color and blinking the unit will show the following status for the PSE;
GREEN — Solid: The PSE has successfully detected a compliant PD and is applying power over the UTP (for legacy pin out simply show active power when applied)
YELLOW — Solid: The PSE is not active. This means the PSE has been configured to provide power, but the PD is :
- Not connected
- Has not detected a compliant PD and is not applying power
- PSE has turned off power for Reset function
OFF — PSE function switch disabled
RED — Blinking: Error Conditions
- Capacitance too High — 1 blink
- Resistance too Low or short circuit — 2 blinks
- Resistance too high or open circuit — 3 blinks
|
|
Remote ( Power over Ethernet ) |
Switches |
eXP-4S110E |
Access |
Switch settings are accessible through a side opening in the chassis |
Rate/Reach |
Two switches enable the user to select the right balance between speed and distance for their environment. |
Signal to Noise Ratio |
Selectable Signal to Noise Ratio (SNR) of 6dB or 9dB. The higher SNR number provides better impulse noise protection but lowers performance. |
Auto-Negotiation (802.3u) control on Port 1 |
Enabled (Default) - The Ethernet Extender uses 802.3u Auto-negotiation on the 10/100Base-TX interface. It is set to advertise full duplex.
Disabled - The Ethernet Extender sets the port according to the position of the speed and duplex switches. |
Force Ethernet Speed on Port 1 |
When Auto-Negotiation switch is disabled, a fixed speed can be forced on port 1 to 100 (Default) or 10 |
Force Ethernet Duplex on Port 1 |
When Auto-Negotiation switch is disabled, Full or half Duplex can be forced on port 1 to Full (Default) or Half |
Link Mode |
Standard (Default) – The 10/100Base-TX link remains active independent of the state of the Ethernet link on its remote peer.
Link Pass-Through- state of the 10/100Base-TX Ethernet connection is “passed through” or propagated across the VDSL link to the 10/100Base-TX Ethernet link on its remote Ethernet Extender peer. |
Interlink Fault Feedback |
Enabled – A loss of VDSL link will drop the 10/100 Ethernet port on each end until the link recovers
Disabled ( Default ) - The state of the VDSL link is not propagated to the 10/100Base-TX port |
Loopback |
Enabled – The VDSL interlink will perform a loopback function, retransmitting all received Ethernet frames back to its remote peer.
Disabled (Default - Up) |
PoE PD Class selection |
N/A |
PD Reset ( Port 1 ) |
When enabled ( down ), the Ethernet Extender will upon loss of link on the VDSL Interlink port, turn off PSE output power to the PD device for 2 seconds then turn the power back on. The power remains on until the VDSL link transitions from up to down again.
When PD Power Reset is disabled ( default ), loss of VDSL link has no effect on power supplied to the PD. |
Environmental Specifications |
eXP-4S110E |
Operating Temperature |
0 C to 50 C (32 F to 122 F) |
Storage Temperature |
minimum range of -25 C to 70 C (-13 F to 158 F) |
Operating Humidity |
5% to 90% non-condensing |
Storage Humidity |
5% to 95% non-condensing |
Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Current mA |
121 @ 48vdc |
Unit Power Consumption watts |
5.8 |
Heat Output
( BTU/HR ) |
19.79 |
MTBF with power adapter (Hours)** |
169,935 |
MTBF without power adapter (Hours)** |
262,530 |
Mounting |
eXP-4S110E |
Wall/Desk |
Standard |
Din Rail Kit |
Optional |
Rack Mount Kit |
Optional |
Product Weight and Dimensions |
eXP-4S110E |
Weight |
0.61Kg, 1.34 lbs |
Dimensions |
163 x 116 x 37 mm, 6.4 x 4.6 x 1.46 inches |
Packaging |
eXP-4S110E |
Shipping Weight |
1.3 Kg, 2.86 lbs |
Shipping Dimensions |
20 x 30 x 7 cm, 7.9 x 11.8 x 2.8 inches |
Regulatory Approvals |
eXP-4S110E |
Emissions |
EN 55022 |
CISPR 22 |
IEC/EN 61000-3-2 |
IEC/EN 61000-3-3 |
Immunity |
EN 55024:2010 |
CISPR 24:2010 |
IEC/EN 61000-4-2 |
IEC/EN 61000-4-3 |
IEC/EN 61000-4-4 |
IEC/EN 61000-4-5 |
IEC/EN 61000-4-6 |
IEC/EN 61000-4-8 |
IEC/EN 61000-4-11 |
Electrical Safety |
EN60950-1 |
IEC 60950-1 |
UL 60950-1 |
CSA C22.2 No. 60950-1 |
Environmental |
Reach, RoHS and WEEE Compliant |
Other |
ECCN: 5A991A |
HTSUS Number: 8517.62.0050 |
Perle Lifetime warranty |
