Local ( power over link - VDSL ) |
Power |

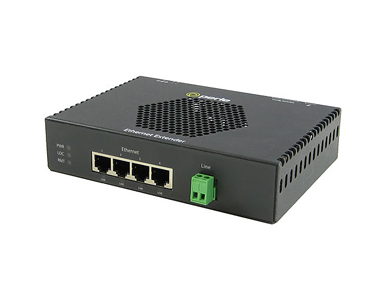

eXP-4S110L-XT |
Unit Powered by |
- Local power adapter or
- PoE Power Sourcing Equipment such as a Cisco PoE+ Switch on port #1
- PoE+ power injector
|
Provides Power to: |
Link ( VDSL Interlink ) |
Power adapter connector |
Barrel or terminal block |
Input Voltage Range from adapter |
29 to 57 |
Input Voltage Range from VDSL (parasitic) |
N/A |
Power Connectors |
5.5mm x 9.5mm x 2.1mm barrel socket and 2 pin terminal Block |
|
Local ( power over link - VDSL ) |
Ethernet |
eXP-4S110L-XT |
10/100Base TX Port(s) |
4 port RJ45 Shielded |
Auto-MDIX |
Auto-MDIX enables proper operation with either straight-through or crossover cabling |
Distance |
Distance up to 100 meters ( 328 feet ) as per IEEE 802.3 |
Maximum Frame Size |
1522 |
Type of PoE device |
PD ( Class 0 or 4 device ) |
PoE PSE Power Budget |
N/A |
PoE PSE RJ45 Cable Pinout |
N/A |
|
Local ( power over link - VDSL ) |
VDSL – Interlink |
eXP-4S110L-XT |
Connector |
Choice of RJ45, BNC or terminal block models for VDSL link connector
- RJ45 – RING pin 4, TIP pin 5 (TIA 568 A/B)
- BNC – Coaxial 75 ohm cable with BNC connector
- Terminal Block – 2 position screw connectors for use with twisted pair telephone, alarm or serial cabling
|
Copper Cabling |
Ethernet Extenders must be connected in pairs using unconditioned wire between 19 ( 0.9 mm ) and 26 AWG ( 0.44 mm ). Circuits that run through signal equalization equipment are not permitted. |
Power Injection over the Interlink ( VDSL ) – 2-wire |
Injects SELV compliant voltage and VDSL data across a single pair of cooper wires ( pins 4 and 5 ) or 2 conductor BNC coaxial cable |
Short Circuit Protection |
Short Circuit protection provided |
Reverse Polarity Protection |
N/A |
Power Multiplier Selection |
When used with 4-pair cable such as CAT5 on the VDSL Interlink port, an optional internal strap selection on the Ethernet Extender will provide VDSL transmission data on 1 pair and power across the 3 other pairs enabling even greater distances for power transmission to be achieved |
VDSL Line Rate/Reach |
Actual distance and rates experienced will depend on condition and gauge of wire used. This Rate/Reach table applies to 24 AWG ( 0.5 MM ) twisted pair wiring on RJ45 (RJ) and terminal block (TB) models.
High Speed Asymmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
101 |
92 |
1000 |
305 |
101 |
63 |
1500 |
457 |
90 |
38 |
2000 |
610 |
62 |
24 |
2500 |
762 |
55 |
10 |
3000 |
914 |
42 |
5 |
3500 |
1000 |
35 |
3 |
High Speed Symmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
101 |
101 |
1000 |
305 |
85 |
101 |
1500 |
457 |
62 |
47 |
2000 |
610 |
60 |
29 |
2500 |
762 |
44 |
14 |
3000 |
914 |
30 |
7 |
3500 |
1000 |
29 |
4 |
Long Reach Symmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
53 |
44 |
1000 |
305 |
53 |
43 |
2500 |
762 |
39 |
18 |
4000 |
1219 |
25 |
4 |
5500 |
1676 |
17 |
1.9 |
7000 |
2134 |
8 |
2.3 |
7500 |
2286 |
7 |
2.2 |
8000 |
2438 |
5 |
2.2 |
Long Reach Asymmetric |
Reach ( Distance ) |
VDSL Rate ( Mbps ) |
feet |
meters |
Downstream |
Upstream |
500 |
152 |
78 |
16 |
1000 |
305 |
78 |
16 |
2500 |
762 |
55 |
10 |
4000 |
1219 |
31 |
0.8 |
5500 |
1676 |
20 |
0.6 |
7000 |
2134 |
11 |
0.6 |
7500 |
2286 |
10 |
0.6 |
8000 |
2438 |
8 |
0.6 |
This table applies when the power multiplier option is selected |
Power Budget for Power over VDSL |
The amount of available power at the PoE PD is dependent on the scenario planned.
Refer to the Power Reach Installation Planning Guide |
|
Local ( power over link - VDSL ) |
Indicators |
eXP-4S110L-XT |
Power / TST |
This green LED is turned on when power is applied to the Ethernet Extender. Otherwise it is off. The LED will blink when in Loopback test mode. |
CO - Local |
Ethernet Extender is operating in CO VDSL mode |
CPE - remote |
Ethernet Extender is operating in CPE VDSL mode |
ILNK |
Indicates Link Status and activity on the Interlink (VDSL) port |
ETH |
Indicates link status and activity on Ethernet port(s). |
PSE Status |
N/A |
|
Local ( power over link - VDSL ) |
Switches |
eXP-4S110L-XT |
Access |
Switch settings are accessible through a side opening in the chassis |
Rate/Reach |
Two switches enable the user to select the right balance between speed and distance for their environment. |
Signal to Noise Ratio |
Selectable Signal to Noise Ratio (SNR) of 6dB or 9dB. The higher SNR number provides better impulse noise protection but lowers performance. |
Auto-Negotiation (802.3u) control on Port 1 |
Enabled (Default) - The Ethernet Extender uses 802.3u Auto-negotiation on the 10/100Base-TX interface. It is set to advertise full duplex.
Disabled - The Ethernet Extender sets the port according to the position of the speed and duplex switches. |
Force Ethernet Speed on Port 1 |
When Auto-Negotiation switch is disabled, a fixed speed can be forced on port 1 to 100 (Default) or 10 |
Force Ethernet Duplex on Port 1 |
When Auto-Negotiation switch is disabled, Full or half Duplex can be forced on port 1 to Full (Default) or Half |
Link Mode |
Standard (Default) – The 10/100Base-TX link remains active independent of the state of the Ethernet link on its remote peer.
Link Pass-Through- state of the 10/100Base-TX Ethernet connection is “passed through” or propagated across the VDSL link to the 10/100Base-TX Ethernet link on its remote Ethernet Extender peer. |
Interlink Fault Feedback |
Enabled – A loss of VDSL link will drop the 10/100 Ethernet port on each end until the link recovers
Disabled ( Default ) - The state of the VDSL link is not propagated to the 10/100Base-TX port |
Loopback |
Enabled – The VDSL interlink will perform a loopback function, retransmitting all received Ethernet frames back to its remote peer.
Disabled (Default - Up) |
PoE PD Class selection |
( Internal strap ) for PoE PD classification type identification for attached IEEE 802.3at compliant PoE+ switch on port #1
Class 0 – PoE PD device - 0.44-12.94W ( Default )
Class 4 – PoE+ PD device 12.95 – 25.5W |
PD Reset ( Port 1 ) |
N/A |
Environmental Specifications |
eXP-4S110L-XT |
Operating Temperature |
-40 C to 75 C (-40 F to 167 F) |
Storage Temperature |
-40 C to 75 C (-40 F to 167 F) |
Operating Humidity |
5% to 90% non-condensing |
Storage Humidity |
5% to 95% non-condensing |
Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Current mA |
142 @ 48vdc |
Unit Power Consumption watts |
6.8 |
Heat Output
( BTU/HR ) |
23.20 |
MTBF with power adapter (Hours)** |
N/A |
MTBF without power adapter (Hours)** |
294,389 |
Mounting |
eXP-4S110L-XT |
Wall/Desk |
Standard |
Din Rail Kit |
Optional |
Rack Mount Kit |
Optional |
Product Weight and Dimensions |
eXP-4S110L-XT |
Weight |
0.61Kg, 1.34 lbs |
Dimensions |
163 x 116 x 37 mm, 6.4 x 4.6 x 1.46 inches |
Packaging |
eXP-4S110L-XT |
Shipping Weight |
0.82 Kg 1.8 lbs |
Shipping Dimensions |
20 x 30 x 7 cm, 7.9 x 11.8 x 2.8 inches |
Regulatory Approvals |
eXP-4S110L-XT |
Emissions |
EN 55022 |
CISPR 22 |
IEC/EN 61000-3-2 |
IEC/EN 61000-3-3 |
Immunity |
EN 55024:2010 |
CISPR 24:2010 |
IEC/EN 61000-4-2 |
IEC/EN 61000-4-3 |
IEC/EN 61000-4-4 |
IEC/EN 61000-4-5 |
IEC/EN 61000-4-6 |
IEC/EN 61000-4-8 |
IEC/EN 61000-4-11 |
Electrical Safety |
EN60950-1 |
IEC 60950-1 |
UL 60950-1 |
CSA C22.2 No. 60950-1 |
Environmental |
Reach, RoHS and WEEE Compliant |
Other |
ECCN: 5A991A |
HTSUS Number: 8517.62.0050 |
Perle Lifetime warranty |
