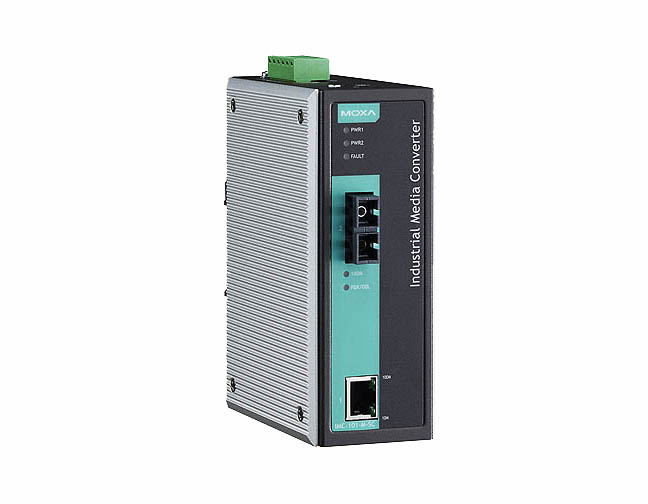

IMC-101-S-SC-80 - Industrial Media Converter, single mode, SC, 80 km, 0 to 60 Degree C by MOXA
|
|
|
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure, port break alarm by relay output
- Redundant power inputs
- -40 to 75°C operating temperature range (-T models)
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
|
|
|
The IMC-101-S-SC-80 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.
Ethernet Interface
Power Parameters
-
Input Current
200 mA @ 12 to 45 VDC
-
Input Voltage
12 to 45 VDC
-
Overload Current Protection
Supported
-
Power Connector
Terminal block
-
Power Consumption
200 mA @ 12 to 45 VDC
Physical Characteristics
Environmental Limits
-
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
0 to 60°C (32 to 140°F)
-40 to 75°C (-40 to 167°F)
-
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
EMC
EN 55032/24
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
-
Environmental Testing
IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
-
Safety
EN 60950-1, UL 60950-1
-
Vibration
IEC 60068-2-6
-
Hazardous Locations
Standard models: UL/cUL Class I Division 2 Groups A/B/C/D
-IEX models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
MTBF
-
Time
401,000 hrs
-
Standards
MIL-HDBK-217F
|
|
|
|
