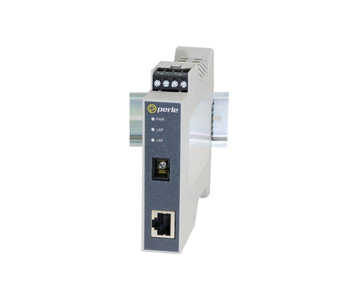

05091270 - SR-100-SC20D-XT - Fast Ethernet Industrial Media Converter: 100Base-TX (RJ-45) [100 m/328 ft] to 100Base-BX 1550nm TX
by PERLE

Perle SR-100-XT DIN Rail Media Converters, 05091270 - SR-100-SC20D-XT, transparently connect UTP copper to fiber in industrial grade operating temperatures -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. These Fast Ethernet Media Converters are ideal for use with industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.

• Extend the data transmission distance of IP-based devices by connecting their 100Base-TX Copper interface to fiber.
• Extend the distance of an existing industrial network by linking CAT5/6/7 cabling to multimode or single mode fiber.
• Protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.

An SR-100-XT Media Converter is also available with an SFP slot.

Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Remote Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-100-XT Fast Ethernet Media Converters the smart choice for IT professionals.

SR-100-XT Industrial Media Converter Features: 100Base-TX to 100Base-X

Hardware Specifications: SR-100-XT Media Converters

Power
Input Supply Voltage	Triple voltage 12 / 24 / 48 VDC (9.6 – 60 VDC) input supporting: a) 2 x Terminal Block power input and  b) 1 x T-Bus power input
Current	0.09 A (@ 24VDC)
Power Consumption	2.6 watts (@ 24VDC)
Power Connector	Dual input Terminal Block and/or T-Bus
Indicators
Power / TST	This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink fast/slow when in Loopback test mode or hardware error.
Fiber link on / Receive activity (LKF)	On: Fiber link present. Blinking slowly: Fiber link disabled because of copper link loss. Blinking quickly: Fiber link present and receiving data. Off: No fiber link present
Copper link on / Receive activity (LKC)	On: Copper link is present. Blinking quickly: Copper link present and receiving data. Blinking slowly: Copper link disabled because of fiber link loss. Off: No copper link present
Switches - accessible by sliding the chassis open
Auto-Negotiation	Auto (Default - Up): In this mode of operation the media converter will negotiate Ethernet parameters on the copper connection. This will ensure the most optimal connection parameters will be in effect. If the copper link partner does not support Auto negotiation, the media converter will default to 100 Mbps and Half Duplex mode. Off: Auto Negotiation should only be turned off, if the copper link partner does not support Auto Negotiation. When the Auto Negotiation switch is set to the OFF position, the media converter will operate at 100 Mbps and Full Duplex mode.
Smart Link Pass-Through	Smart Link Pass-Through (Default - Up): In this mode, the link state on one connection is directly reflected through the media converter to the other connection. If link is lost on one of the connections, then the other link will be brought down by the media converter. If the installation has a media converter on both ends of the fiber link and both are setup for Link Pass-Through, then a loss of copper link on the far end device will propagate through both media converters and will result in a loss of copper link at the near end device. This would, therefore, resemble a direct copper connection. Standard Mode (Down): In this mode, the links on the fiber and copper sides can be brought up and down independently of each other. A loss of link on either the fiber ports or copper ports can take place without affecting the other connection
Pause	Auto (Deafult-Up): When Auto Negotiation has been set to Auto, the media converter will use this setting for its Ethernet parameter negotiation on the copper connection. Half: The media converter will not negotiate support for the Pause feature.
Loopback	Disabled (Default-Up): The loopback feature is disabled. This is the normal position for regular operation. The switch must be set to this position for data to pass through the media converter. Enabled: This is a test mode. All data received on the receive (RX) fiber connection is looped back to the transmit (TX) fiber connection. The state of the copper is not relevant and no data or link status is passed through to the copper side.
Far-End Fault (FEF)	Enabled (Defualt-Up): If the media converter detects a loss of fiber signal on the fiber receiver, it will immediately send a FEF on the fiber link. This notifies the fiber link partner that an error condition exists on the fiber connection. If the remote media converter is set up for FEF, and the local media converter is set up with Link Pass-Through, a loss of fiber link on either the transmit or receive line will be passed through to the local copper connection to notify the connected device. If the media converter has been set to Link Pass-Through mode, the effect will be the same as FEF since the link loss on the fiber receiver will bring down the copper link, which will in turn cause the transmit fiber link to be brought down. Disabled: The media converter will not monitor for or generate Far End Fault.
Cables and Connectors
100Base-TX	RJ45 connector, 2 pair CAT 5 (UTP or STP) or better cable
Fixed Fiber	Dual multimode or single mode ( Duplex ) fiber - SC, ST Single strand fiber ( Simplex ) – SC
Magnetic Isolation	1.5kv
Fiber Optic Cable	Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron  Single Mode: 9/125 micron (ITu-T 625)
Filtering
Filtering	1024 MAC Addresses
Frame Specifications
Buffer	512 Kbits frame buffer memory
Size	Maximum frame size of 2048 bytes
Packet Transmission Characteristics
Bit Error Rate (BER)	<10 -12
Environmental Specifications
Operating Temperature	-40 C to 75 C (-40 F to 167 F)
Storage Temperature	-40 C to 85 C (-40 F to 185 F)
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Operating Altitude	Up to 3,048 meters (10,000 feet)
Heat Output ( BTU/HR )	7.37
MTBF (Hours)	694,621 (Calculation model based on MIL-HDBK-217-FN2 @ 30 °C)
Chassis	Molded plastic DIN Rail case with an IP20 ingress protection rating
Mounting
Din Rail Kit	Native
Product Weight and Dimensions
Weight	0.12 kg, 0.26 lbs
Dimensions	114 x 100 x 22.5mm, 4.5 x 3.9 x 0.88 inches
Packaging
Shipping Weight	0.17 kg, 0.37 lbs
Shipping Dimensions	145 x 105 x 30 mm, 5.7 x 4.1 x 1.2 inches
Regulatory Approvals
Emissions	FCC 47 Part 15 Class A, EN55032 (CISPR32) Class A ICES-003 EN61000-6-4 (Emissions for industrial environments) CISPR 32:2015/EN 55032:2015 (Class A) CISPR 24:2010/EN 55024:2010  EN61000-3-2
Immunity	EN55024 EN 61000-4-2 (ESD)  EN 61000-4-3 (RS) EN 61000-4-4 (EFT)  EN 61000-4-5 (Surge)  EN 61000-4-6 (CS)  EN 61000-4-8 (PFMF)  EN 61000-4-11  IEC/EN 61000-6-2 (General Immunity for Industrial Environments)
Electrical Safety	UL 61010-1 and UL 61010-2-201 (including CB)  UL/ULC/EN 62368-1 (including CB)  CAN/CSA C22.2 No. 62368-1-14
	CE
Laser Safety	EN 60825-1:2007
	Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental	Reach, RoHS and WEEE Compliant
Other	ECCN: 5A991
	HTSUS Number: 8517.62.0050
