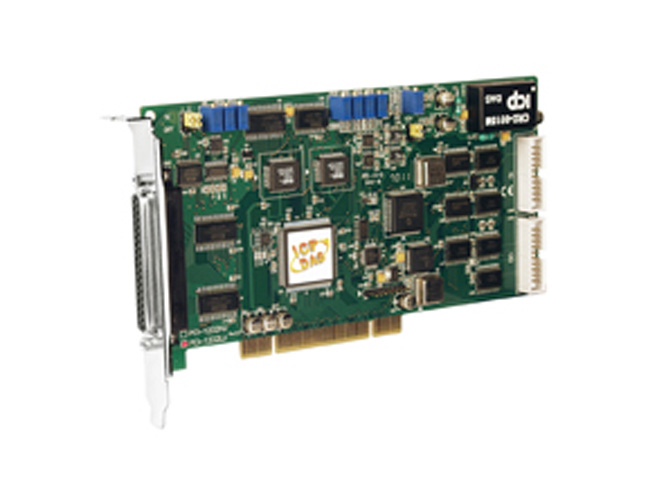

PCI-1202LU - 32-ch, 12-bit, 110KS/s Low Gain Multi-function DAQ Board (1K word FIFO)
by ICP DAS
|
|
|
|
32-ch, 12-bit, 110 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO), Includes one CA-4002 D-Sub connector.
|
|
|
The PCI-1202 series is a family of high performance data acquisition board. It features a continuous, 110 kHz for low gain (40 kHz for high gain), gap-free data acquisition under DOS. The PCI-1202 family has the same hardware architecture as PCI-1802, and provides 32-channel single-ended or 16-channel differential analog inputs. Like the PCI-1802 family, the PCI-1202 series features " Magic Scan" function, M-function, X-function, and Continuous Capture function.
The PCI-1202LU/HU Universal PCI card supports both 5 V and 3.3 V, while the PCI-1202L/H PCI card supports 5 V PCI bus only. The PCI-1202LU/HU (Universal PCI version) is fully compatible with the PCI-1202L/H (PCI version). Compared with the PCI version cards, the PCI-1202LU/HU add new designs of D/I pull-high/low and Card-ID switch. The PCI-1202LU/HU cards are designed as drop-in replacements for the PCI-1202L/H cards for RoHS reason, in other words, the PCI version PCI-1202 card can be replaced with the Universal PCI version one without software modification.
The PCI-1202LU/8K cards are equipped with 8 K samples hardware FIFO that reduces data overflow issues under multi-tasking environment like Windows and Linux.
The PCI-1202LU/HU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.
ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model).
| ICP DAS PC-Based Multifunction Board Selection Guide |
| Model Name |
D/A Channel |
A/D Channel |
A/D Sampling Rate |
FIFO Size |
Software Trigger (Polling) |
Pacer Scan (Magicscan) |
Post-trigger
Pre-trigger
Middle-trigger |
Interrupt function |
|
| PCI-1202LU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
110 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1202HU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1602U |
12-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
100 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1602FU |
12-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
200 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1800LU |
12-bit, 2-ch |
12-bit, 16 S.E/8 Diff |
330 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1800HU |
12-bit, 2-ch |
12-bit, 16 S.E/8 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1802LU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
330 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1802HU |
12-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
44 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-822LU |
16-bit, 2-ch |
12-bit, 32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective Programmable DIO |
| PCI-826LU |
16-bit, 2-ch |
16-bit, 32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective Programmable DIO |
- 12-bit 110 kHz A/D converter
- 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
- The total sampling rate is 110 K samples/s for low gain model and 40 K samples/s for high gain model.
- Three external triggers: post-trigger, pre-trigger, middle-trigger
- 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate.
- PCI-1202L/LU provides programmable low gain: 0.5, 1, 2, 4, 8.
- PCI-1202H/HU provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
- Internal / external trigger.
- Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)
[PCI-1202LU/HU only]
- Universal PCI card, supports both 5 V and 3.3 V PCI bus.
- Digital input port can be set to pull-high or pull-low.
| Analog Input |
| Channels |
32 single-ended / 16 differential |
| A/D Converter |
12-bit, 8.5 μs conversion time |
| Sampling Rate |
110 kS/s. max. |
| FIFO Size |
1024 samples |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pF |
| Trigger Modes |
Software, Internal programmable pacer, External (5 V/TTL compatible) |
| Data Transfer |
Polling |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
+/- 4 ppm/°C of FSR |
| Analog Output |
| Channels |
2 |
| Resolution |
12-bit |
| Accuracy |
0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Output Range |
DC:600 mA/+30 V for one channel @ 100% duty |
| Output Driving |
+/- 5 mA |
| Slew Rate |
8.33 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Digital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
2.7 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
2.7 MHz (Typical) |
| Timer/Counter |
| Channels |
3(Independent x 1/Internal pacer x 1/External pacer x 1) |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 8 MHz |
| General |
| Bus Type |
3.3 V/ 5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Card ID |
Yes(4-bit) for Version 4.0 or above |
| I/O Connector |
Female DB37 x 1
Male 20-bit ribbon x 2 |
| Dimensions (L x W x D) |
196 mm x 105 mm x 22 mm |
| Power Consumption |
300 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Model |
PCI-1202 L /PCI-1202 LU (Low-Gain) |
| Gain |
0.5 |
1 |
2 |
4 |
8 |
| Unipolar |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
| Bipolar |
- |
0 ~ 10 |
0 ~ 5 |
0 ~ 2.5 |
0 ~ 1.25 |
| Sampling Rate Max. |
110 |
110 |
110 |
110 |
110 |
|
|
