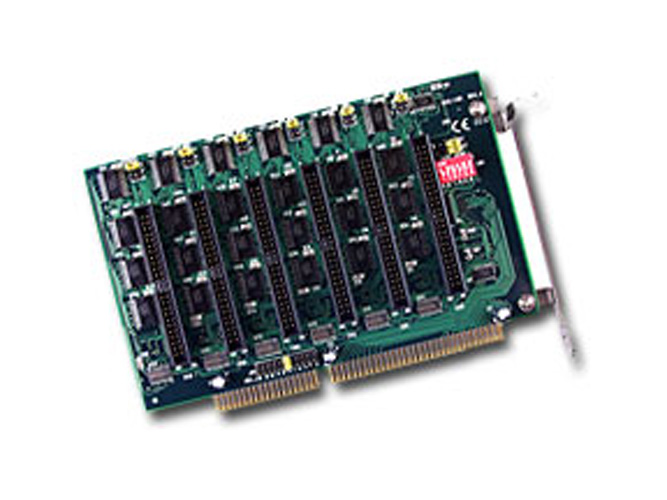

The DIO-144/96 provides 144/96 TTL digital I/O lines. The DIO-144/96 emulates 8255 mode 0 and has an increased output current of 15 mA (source) and 64 mA (sink) , allowing it to control LED, relay, etc. The DIO-144/96 consists of eighteen 8 bit bi-directional ports and 2 input lines for interrupt enable and interrupt. The 8 bit ports are named port A(PA),port B(PB) and port C(PC). The port C can be split into two four bit. All port are configured as inputs upon power-up or reset. The DIO-144/96 uses 4 consecutive I/O locations in I/O addressing space. The base address is selectable from 200 to 3FF hex. The interrupt signal can be connected to any of the interrupt levels 2 through 15.
- Double side SMT , short card, power saving
- DIO-144 : 144 digital I/O lines
DIO-96 : 96 digital I/O lines
- Emulate 8255 mode 0 (Basic Input / Output mode)
- Buffer output for higher driving capability than 8255
- Register compatible to 722 series
- Programmable interrupt handling
- DIO-144 : Six 50-pin Header
DIO-96 : Four 50-pin Header
- Output status readback
