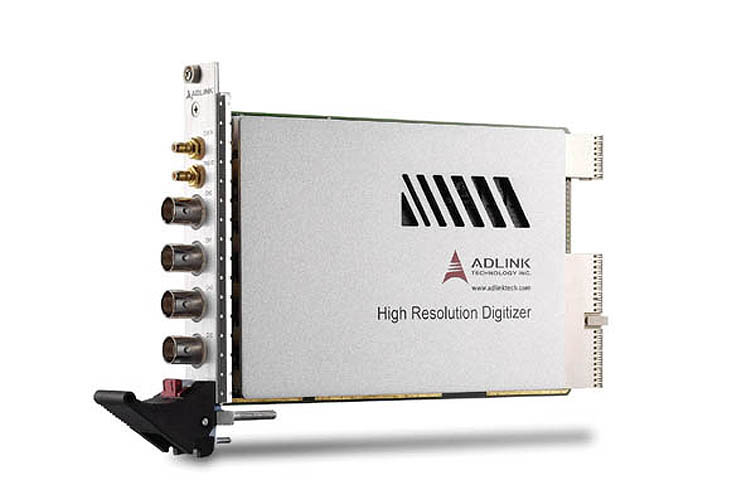

PXI-9846H/512 - High Resolution Digitizer,4-CH 16-bit 40MS/s 20MHz PXI Digitizer w/ +/-5V and +/-1V Input range and 512MB SDRAM
by ADLINK
|
|
|
|
- 3U Eurocard form factor
- 4-CH simultaneous single-ended AI
- 16-bit high resolution A/D converter
- Up to 10 MS/s, 20 MS/s and 40 MS/s per channel
- 512 MB on-board memory for data storage
- Software selectable 50Ω or 1MΩ input impedance
- Programmable input voltage range: ±1 V, ±0.2 V and ±5 V, ±1 V
- Multiple module synchronization via the PXI trigger bus
|
|
|
The ADLINK PXI-9816/9826/9846 are 10 MS/s, 20 MS/s, 40 MS/s sampling 16-bit 4-CH digitizers designed for digitizing high frequency and wide dynamic range signals with an input frequency up to 20 MHz. The analog input range can be programmed via software to / ±1 V or / ±0.2 V. With a deep onboard acquisition memory up to 512 MB, the PXI-9816/PXI-9826/PXI-9846 are not limited by the data transfer rate of the PCI bus to enable the recording of waveforms for extended periods of time. The PXI-9816/PXI-9826/PXI-9846 are equipped with four high linearity 16-bit A/D converters ideal for demanding applications with a high dynamic range such as radar, ultrasound, and software-defined radio.
|
|
