The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.
The ECAT-2052 is built in isolated 8 digital inputs and 8 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In digital I/O: 8 DI and 8 DO
- RoHS compliant
- ESD Protection 4 KV Contact for each channel

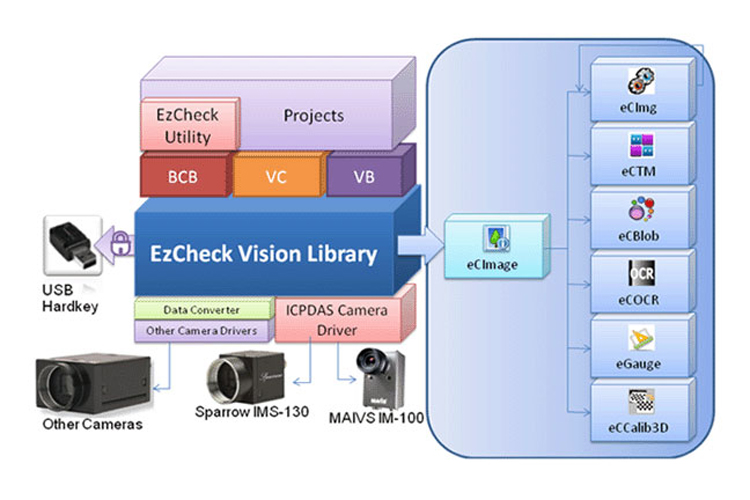

The eCImage is the core of EzCheck Vision Library, all functions in the library must depend on it. Main Feature Multi-format image file access
The eCImage supports several formats image file such as Bmp, Jpg, Tif, and Png for loading and saving. The image capturing of cameras is also supported by eCImage.
Image pixel access
Every pixel of an image is free to get or set its value of RBG or Gray-Level.
Image resizing
Users can resize the image by setting the absolute size or ratio.
The core of processing and analysis functions
All of the image pre-processing and analysis are done in the eCImage. Users can get the processed results from it.
