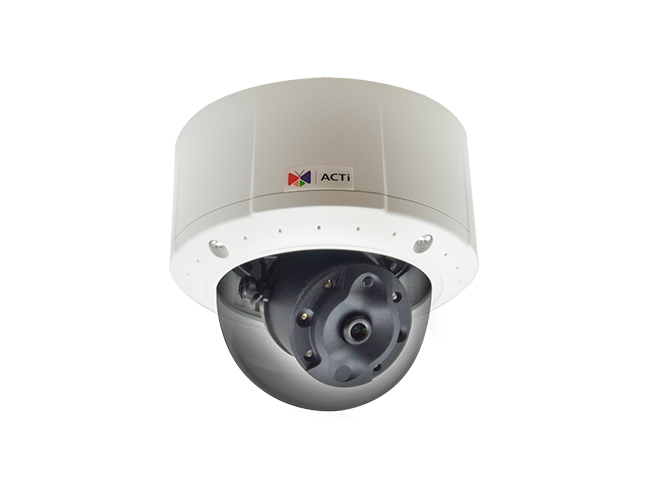

B71 - 3MP Video Analytics Indoor/Outdoor Dome Camera, Day/Night Vision, Adaptive IR, Extreme WDR, SLLS, Fixed Lens by ACTi
|
|
|
- 3Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f3.6mm/F1.2
- Extreme WDR
- 60 fps at 1920 x 1080
- Wide Angle
- Weatherproof (IP68), Vandal proof (IK10) and Vibration proof (IEC60571)
- Built-in Analytics
|
|
|
B71 is
a 3MP Video Analytics Outdoor Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens, f3.6mm/F1.2 (HOV:87°), H.264, 1080p/120fps, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, DI/DO, Built-in Analytics
Device |
B71 |
Product Type |
Dome |
Maximum Resolution |
3MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/2.8 " |
Effective Pixels |
2065(H) X 1553(V) (3.21 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F1.2 (30 IRE, 2400 K); B/W: 0 lux at F1.2 (IR LED on) |
Color to B/W Switch |
ISP based switch, configurable |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
Adaptive IR LED |
IR Working Distance |
40m |
Electronic Shutter |
1/5-1/16000sec (manual mode); 1/5-1/16000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1300 TVL |
S/N Ratio |
56 dB |
Lens |
|
Focal Length |
Fixed focal, f3.6mm |
Aperture |
F1.2 |
Iris |
Fixed iris |
Focus |
Fixed focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
81.7° |
Vertical Viewing Angle |
59.6° |
Viewing Angle Adjustment |
Pan: -175°-175°, Tilt: 5°-175°, Rotation: -175°-175° |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
30 fps at 2048 x 1536
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 |
Multi-Streaming |
Simultaneous triple streams based on three configurations |
Bit Rate |
128Kbps - 12Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Extreme WDR (145 dB) |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
4 configurable regions |
Text Overlay |
Yes |
Built-in Analytics |
Object Based Motion Detection, Tamper, Shock Detection, Line Crossing, Enter Area, Missing Object*, Unattended Object*, Loitering, Smoke Detection*, Fire Detection* (Some of the algorithms may not be available in the first release, can be upgraded for free later) |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Flip, Mirror, Rotation* |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio |
|
Audio Type |
2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
2/2 |
General |
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption |
12.95 W (PoE) |
Environmental Casing |
Weatherproof (IP68), Vandal proof (IK10), Vibration proof (IEC60571), Fire protection (EN45545), Built-in dehumidifier |
Mount Type |
Surface, Wall Mount, Pendant, Flush, Corner Mount, Pole Mount, Gang Box |
Dehumidifier |
Yes |
Starting Temperature |
-40°C ~ 55°C (-40°F ~ 131°F) |
Operating Temperature |
-40°C ~ 55°C (-40°F ~ 131°F) |
Approvals |
CE, FCC, IP68, NEMA 4X, IK10, IEC60571, EN45545, UL (for optional PoE injector and power adapter) |
|
|
