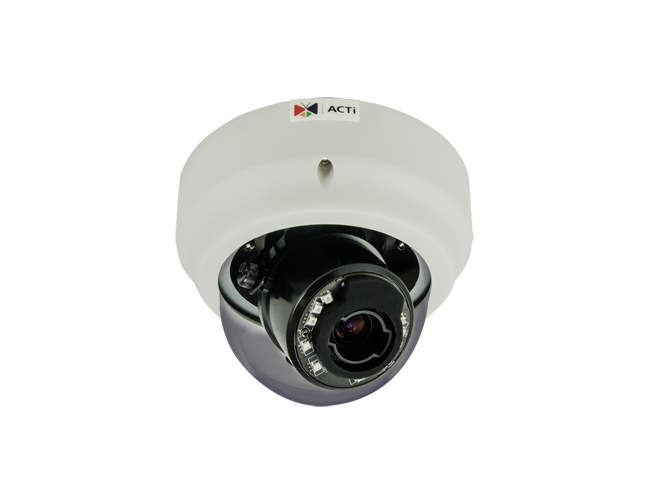

B63 - 2MP Video Analytics Indoor Zoom Dome Camera with Day/Night Mode, Adaptive IR, Extreme WDR, SLLS, 3x Zoom Lens
by ACTi
|
|
|
|
- 2 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 3x Zoom Lens with f3-9mm / F1.3-2.2, DC Iris, Auto Focus
- Extreme WDR (145 dB)
- 60 fps at 1920 x 1080
- Vandal Resistant (IK09)
- Built-in Analytics
|
|
|
B63
is
a 2MP Video Analytics Indoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 3x Zoom lens, 3-9mm/F1.3-2.2 (HOV:113.7°-38°), DC iris, Auto Focus, H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC, PoE/DC12V, IK09, DI/DO, Built-in Analytics
Device |
B63 |
Product Type |
Zoom Dome |
Maximum Resolution |
2MP |
Application Environment |
Indoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/2.8 " |
Effective Pixels |
1944(H) X 1224(V) (2.38 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F1.3 (30 IRE, 2400 K); B/W: 0 lux at F1.3 (IR LED on) |
Mechanical IR Cut Filter |
Yes |
IR LED |
Adaptive IR LED |
IR Working Distance |
40m |
Horizontal Resolution (TV Lines) |
1450 TVL |
S/N Ratio |
56 dB |
Lens |
|
Focal Length |
Zoom, f3.0-9mm |
Aperture |
F1.3-F2.2 |
Zoom Ratio |
3x optical |
Zoom Application |
Camera Installation, Auto Zoom by Event, Manual Operation |
Iris |
DC iris |
Focus |
Auto focus |
Lens Mount |
Board mount |
Horizontal Viewing Angle |
102.1° - 36° |
Vertical Viewing Angle |
56.8° - 20.1° |
Viewing Angle Adjustment |
Pan: -175°-175°, Tilt: 5°-170°, Rotation: -175°-175° |
PTZ |
|
Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P, ACTi URL command |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 |
Multi-Streaming |
Simultaneous triple streams based on three configurations |
Bit Rate |
128Kbps - 12Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Extreme WDR (145 dB) |
Image Enhancement |
Digital Image Stabilizer, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
20 configurable 3D privacy masks |
Built-in Analytics |
Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Rotation |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio |
|
Audio Type |
2-way, Line-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection, |
Event Response |
Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
2/2 |
General |
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption |
12 W (PoE), 11 W (DC, IR on) |
Environmental Casing |
Vandal resistant (IK09) |
Mount Type |
Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
Heater |
Yes |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) within 30 minutes |
Operating Temperature |
-20°C ~ 50°C (-4°F ~ 122°F) |
Approvals |
CE, FCC, IK09, UL (for optional PoE injector and power adapter) |
|
|
